XP Power recommends a PCB layout with a solid ground plane and a thermal pad connected to a heat sink or a metal plate to dissipate heat. A minimum of 1 oz copper thickness is recommended. Additionally, ensure good airflow around the module to prevent overheating.
To ensure EMC, XP Power recommends using a metal enclosure, keeping the module away from sensitive components, and using EMI filters or shielding on the input and output lines. Additionally, follow good PCB design practices, such as separating analog and digital grounds, and using decoupling capacitors.
The derating curve for the JHM1012D05 is typically provided in the datasheet or can be obtained from XP Power's application notes. As a general guideline, the module's output power should be derated by 1.5% per degree Celsius above 50°C to ensure reliable operation.
Yes, the JHM1012D05 can be used in a redundant or parallel configuration, but it's essential to follow XP Power's guidelines for synchronization and current sharing. Additionally, ensure that the modules are properly isolated and that the system is designed to handle the increased power and heat dissipation.
The MTBF of the JHM1012D05 is typically provided in the datasheet or can be obtained from XP Power's reliability reports. As a general guideline, the MTBF is around 1.5 million hours at 40°C, but this may vary depending on the specific application and operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JHM1012D05 Overview

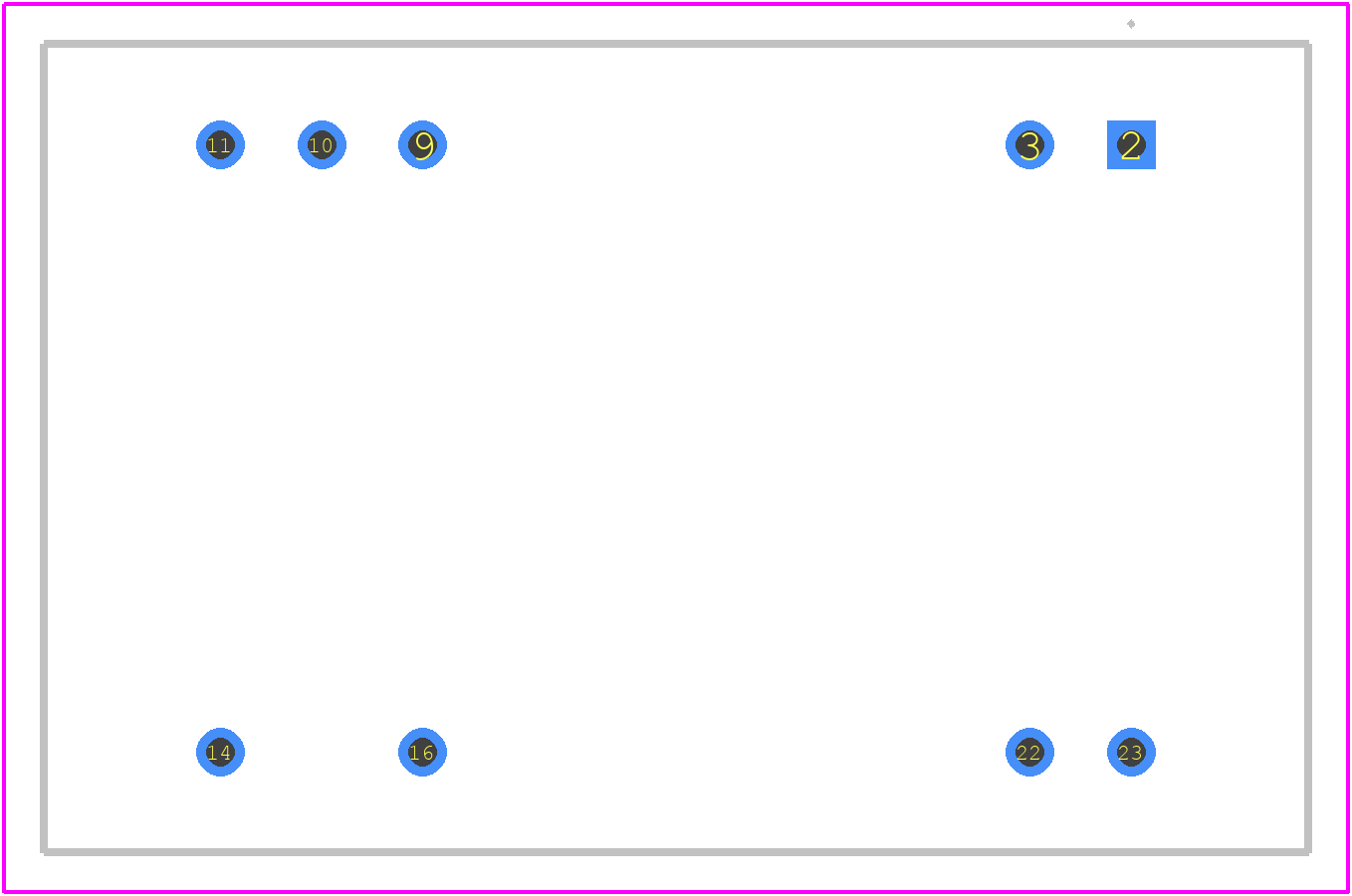

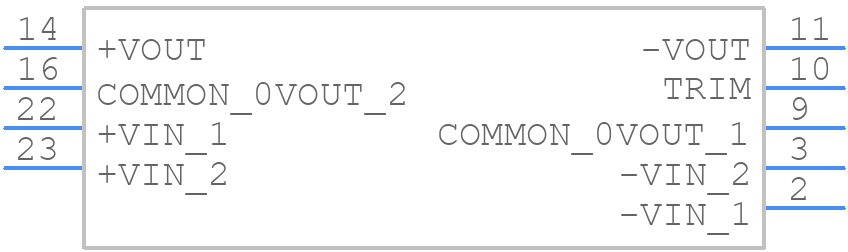

Use the download button to access the JHM1012D05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JHM10,
or try a keyword search, such as Power Supply Modules
