JJLV0UG1070NOPPRTR - TE Connectivity

Description: Body Features: Actuator Force 1.23 OZ | Actuator Material Thermoplastic | Actuator Force 35 G | Product Orientation Vertical | Configuration Features: Switch Feedback Type Non-Tactile | ESD Grounding Terminal Without | Operating Function Off (On) | Configuration (Pole-Throw) Single Pole - Single Throw | Number of Actuators Single | Ganged Without | Contact Features: Switch Contact Plating Material Silver | Contact Base Material Stainless Steel | Contact Current Rating 5 MAMP | Housing Features: Process Seal

Download JJLV0UG1070NOPPRTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

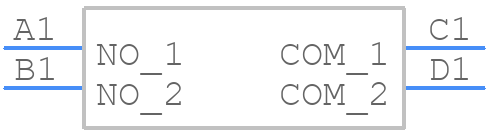

Symbol
JJLV0UG1070NOPPRTR - TE Connectivity - PCB symbol
click to zoom

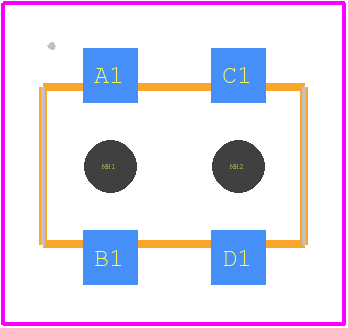

PCB Footprints
JJLV0UG1070NOPPRTR - TE Connectivity PCB footprint - Other - Other - JJLV0UG1070NOPPRTR-2
click to zoom
3D Models
JJLV0UG1070NOPPRTR - TE Connectivity - 3D model - Other - JJLV0UG1070NOPPRTR-2
click to zoom

JJLV0UG1070NOPPRTR Details

  • Manufacturer Part Number:

    JJLV0UG1070NOPPRTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.70.00

  • Factory Lead Time:

    8 Weeks, 6 Days

  • Manufacturer:

    TE Connectivity

  • Actuator Material:

    POLYETHYLENE

  • Actuator Type:

    EXTENDED TOP TYPE

  • Center Contact Plating:

    SILVER

  • Contact Current(AC)-Max:

    0.005 A

  • Contact Current(DC)-Max:

    0.005 A

  • Contact Function:

    OFF-(ON)

  • End Contact Material:

    STAINLESS STEEL

  • Mounting Feature:

    PANEL MOUNT

  • Packing Method:

    TR

  • Surface Mount:

    NO

  • Switch Function:

    SPST

  • Switch Type:

    SNAP ACTING/LIMIT SWITCH

  • Termination Type:

    SOLDER

JJLV0UG1070NOPPRTR Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm, as specified in the TE Connectivity application notes.
  • Yes, the JJLV0UG1070NOPPRTR is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration environments.
  • Yes, the JJLV0UG1070NOPPRTR has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to water and dust.
  • The maximum operating temperature range for the JJLV0UG1070NOPPRTR is -40°C to 125°C, as specified in the datasheet.
  • No, the JJLV0UG1070NOPPRTR is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JJLV0UG1070NOPPRTR Overview

Use the download button to access the JJLV0UG1070NOPPRTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JJLV0, or try a keyword search, such as Snap Acting/Limit Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
