JJM2W-12V - Panasonic

Description: Automotive Relay SPST-NO (DM) (1 Form U) 12VDC Coil Through Hole

Download JJM2W-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

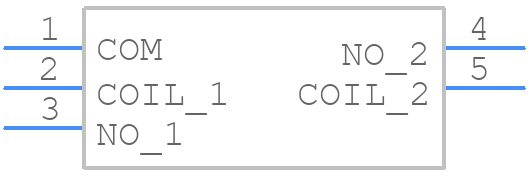

Symbol
JJM2W-12V - Panasonic - PCB symbol
click to zoom

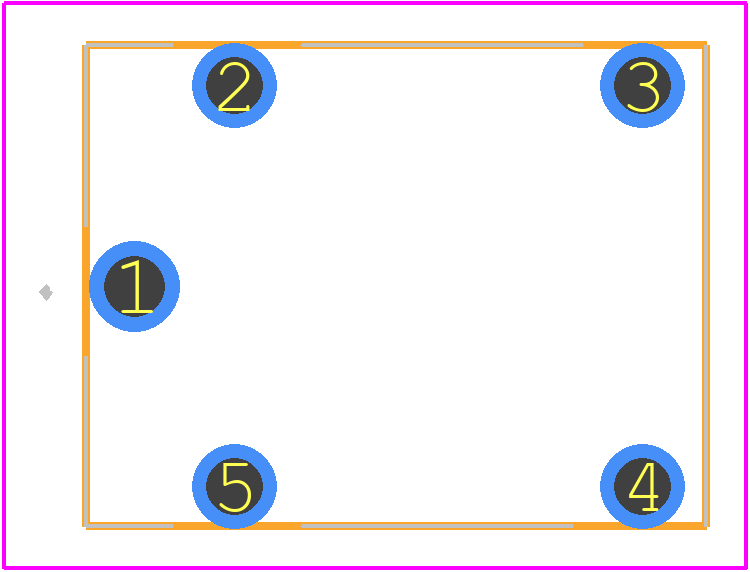

PCB Footprints
JJM2W-12V - Panasonic PCB footprint - Other - Other - JJM2W-12V-2
click to zoom
3D Models
JJM2W-12V - Panasonic - 3D model - Other - JJM2W-12V-2
click to zoom

JJM2W-12V Details

  • Manufacturer Part Number:

    JJM2W-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.50

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    12 mm

  • Body Height:

    13.9 mm

  • Body Length or Diameter:

    15.5 mm

  • Coil Current(DC)-Max:

    0.083 A

  • Coil Operate Voltage(DC):

    6.9 V

  • Coil Power:

    1000 mW

  • Coil Release Voltage(DC):

    1 V

  • Coil Resistance:

    144 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(DC)-Max:

    12 A

  • Contact (DC) Max Rating R Load:

    12A@14VDC

  • Contact Voltage(DC)-Max:

    14 V

  • Contact/Output Supply Type:

    DC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    10 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    BOX; TUBE

  • Physical Dimension:

    15.5mm x 12mm x 13.9mm

  • Relay Action:

    MOMENTARY

  • Relay Function:

    DPDT

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

JJM2W-12V Frequently Asked Questions (FAQs)

  • A recommended PCB layout for JJM2W-12V is to use a ground plane on the bottom layer, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a 10uF capacitor between VIN and GND, and a 1uF capacitor between VOUT and GND.
  • To ensure reliability in high-temperature applications, it's recommended to derate the output current of JJM2W-12V according to the temperature derating curve provided in the datasheet. Additionally, ensure good airflow around the device and avoid overheating.
  • Yes, JJM2W-12V can be used in a parallel configuration to increase output current. However, it's recommended to use a current-sharing circuit to ensure equal current distribution between the devices.
  • The maximum input voltage that JJM2W-12V can withstand is 15V. Exceeding this voltage may damage the device.
  • To troubleshoot issues with JJM2W-12V, check the input voltage, output current, and ambient temperature. Ensure that the device is properly soldered and that the PCB layout is correct. Also, check for any signs of physical damage or overheating.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JJM2W-12V Overview

Use the download button to access the JJM2W-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JJM2W, or try a keyword search, such as Power/Signal Relays
