JMGSC-5LW footprint, schematic symbol and 3D model by TE Connectivity

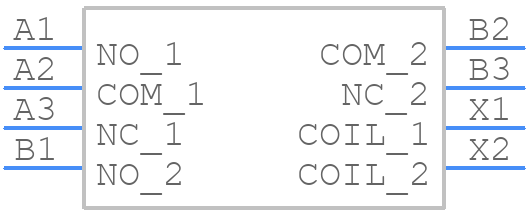

Symbol

click to zoom

PCB Footprints

JMGSC-5LW - TE Connectivity PCB footprint - Other - Other - JMGSC-5LW-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JMGSC-5LW
Part Number JMGSC-5LW
Manufacturer TE Connectivity
Pin Count 8
Part Category Relay or Contactor
Package Category Other
Footprint Name Other - JMGSC-5LW-1
Released Date May 27, 2023
Last Modified Date May 28, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

JMGSC-5LW Details

Manufacturer Part Number:
JMGSC-5LW
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.41.00.20
Manufacturer:
TE Connectivity
Coil Power:
250 mW
Coil Resistance:
100 Ω
Coil Voltage(DC)-Max:
5 V
Coil/Input Supply Type:
DC
Contact Current(AC)-Max:
1 A
Contact Current(DC)-Max:
1 A
Contact Voltage(AC)-Max:
28 V
Contact Voltage(DC)-Max:
28 V
Mounting Feature:
PANEL MOUNT
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-65 °C
Relay Action:
MOMENTARY
Relay Form:
2 FORM C
Relay Function:
DPDT-CO
Relay Type:
POWER/SIGNAL RELAY
Sealing:
HERMETICALLY SEALED
Surface Mount:
NO
Termination Type:
SOLDER/QUICK CONNECT

JMGSC-5LW Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
Yes, JMGSC-5LW is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard, which means it can operate in environments with vibrations up to 15 g (147 m/s²) at 10-2000 Hz.
Yes, JMGSC-5LW is suitable for outdoor use. It has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.
The operating temperature range for JMGSC-5LW is -40°C to 125°C (-40°F to 257°F).
Yes, JMGSC-5LW is designed to operate in humid environments. It meets the IEC 60068-2-30 standard for humidity, which means it can operate in environments with relative humidity up to 95% at 40°C (104°F).

Trust Checks

Community Provided

System Verified

Community Approved

JMGSC-5LW Overview

Use the download button to access the JMGSC-5LW schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like JMGSC, or try a keyword search, such as Power/Signal Relays
