JMGSCDD-26PW - TE Connectivity

Description: General Purpose Signal Relay, DC, Non-Polarized, Monostable, 2 Form C DPDT-CO, 1 A Contact Rating, 26.5 VDC Coil Voltage, .199 W Coil Power

Download JMGSCDD-26PW Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

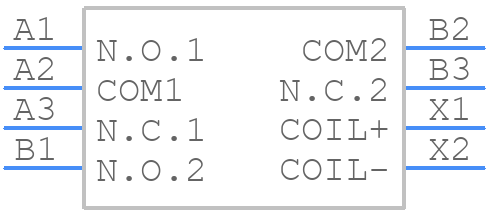

JMGSCDD-26PW - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
JMGSCDD-26PW - TE Connectivity PCB footprint - Other - Other - JMGSCDD-26PW-2
click to zoom

JMGSCDD-26PW Details

  • Manufacturer Part Number:

    JMGSCDD-26PW

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TE Connectivity

  • Coil Power:

    199 mW

  • Coil Resistance:

    3200 Ω

  • Coil Voltage(DC)-Max:

    26.5 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(AC)-Max:

    28 V

  • Contact Voltage(DC)-Max:

    28 V

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

JMGSCDD-26PW Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the JMGSCDD-26PW connector is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in).
  • Yes, the JMGSCDD-26PW connector is designed to withstand high-vibration environments, making it suitable for applications such as industrial, automotive, and aerospace.
  • Yes, the JMGSCDD-26PW connector is designed to operate in harsh environments, with a temperature range of -40°C to 125°C (-40°F to 257°F) and humidity up to 95% RH.
  • The JMGSCDD-26PW connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent connections and disconnections are required.
  • Yes, the JMGSCDD-26PW connector is designed to be compatible with other TE Connectivity products, including cable assemblies, PCB connectors, and other interconnect solutions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JMGSCDD-26PW Overview

Use the download button to access the JMGSCDD-26PW schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like JMGSC, or try a keyword search, such as Power/Signal Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
