JMR0312D15 - XP POWER

JMR0312D15 Details

• Manufacturer Part Number:

  JMR0312D15

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

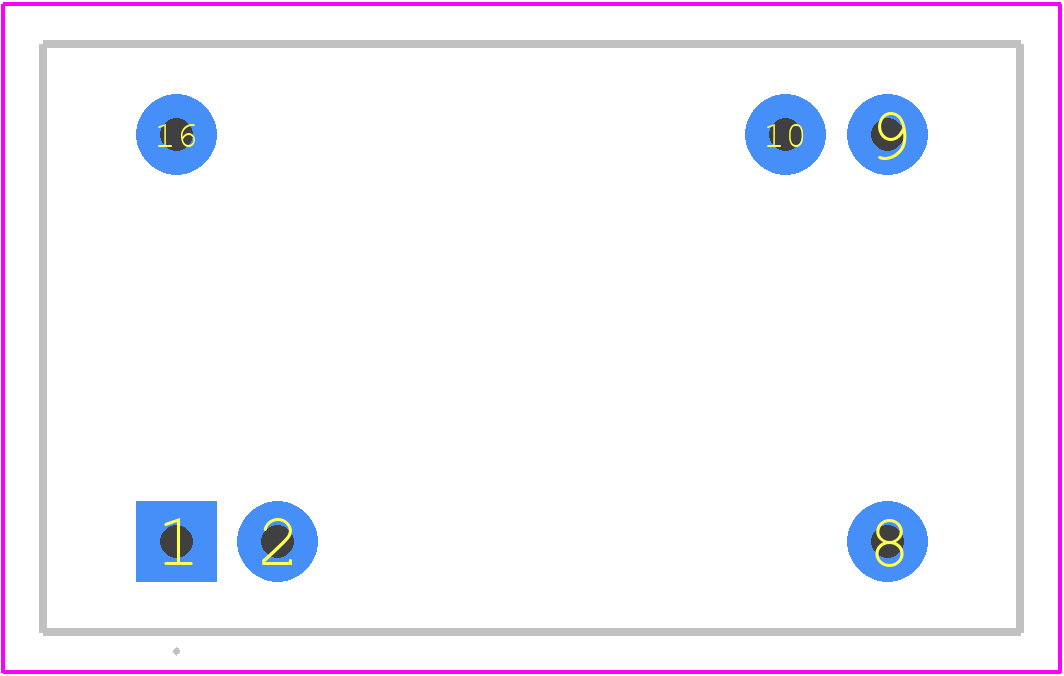

• Package Description:

  DIP-16/6

• ECCN Code:

  EAR99

• Manufacturer:

  XP Power

• YTEOL:

  6

• Additional Feature:

  -15V ADDITIONAL OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  AAMI, ANSI, CB, CE, CSA, EN, ES, IEC, TUV, UKCA,UL

• Efficiency (Main Output):

  81%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  4.5 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-PDIP-P6

• Length:

  24.4 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  90 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.117 A

• Output Voltage-Max:

  15.15 V

• Output Voltage-Min:

  14.85 V

• Output Voltage-Nom:

  15 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP6/16,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  OVER LOAD, SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.026 Vrms

• Screening Level:

  EN/ES/IEC 60601-1, TWO MOPP

• Seated Height-Max:

  11.3 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  3.5 W

• Trim/Adjustable Output:

  NO

• Width:

  14.7 mm
