JMSPD-12XP - TE Connectivity

Description: Contact Features: Contact Current Rating (Max) 1 AMP | Contact Arrangement 2 Form C, DPDT, 2 C/O | Electrical Characteristics: Shock Resistance 75G's, 6ms | Input Voltage 12 VDC | Contact Switching Voltage (Max) 28 VDC | Vibration Resistance 30G's, 10 – 3000Hz | Coil Magnetic System Non-Polarized, Monostable | Coil Resistance 850 OHM | Actuating System DC | Coil Power Rating DC 169 MILW | Coil Voltage 12 VDC | Coil Power Measurement Milliwatts | Product Type Features: Enclosure Type Hermetically Sealed |

Download JMSPD-12XP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

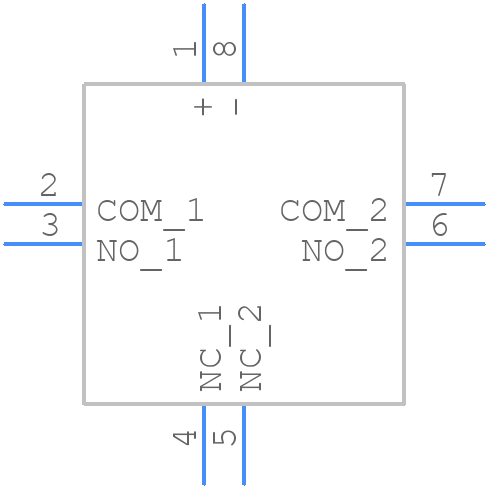

JMSPD-12XP - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
JMSPD-12XP - TE Connectivity PCB footprint - Other - Other - JMSPD-12XP
click to zoom
3D Models
JMSPD-12XP - TE Connectivity - 3D model - Other - JMSPD-12XP
click to zoom

JMSPD-12XP Details

  • Manufacturer Part Number:

    JMSPD-12XP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.41.00.20

  • Manufacturer:

    TE Connectivity

  • Additional Feature:

    WITH COIL SUPPRESSION DIODE

  • Coil Current(DC)-Max:

    0.014 A

  • Coil Power:

    169 mW

  • Coil Resistance:

    850 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact Current(AC)-Max:

    1 A

  • Contact Current(DC)-Max:

    1 A

  • Contact Voltage(AC)-Max:

    28 V

  • Contact Voltage(DC)-Max:

    28 V

  • Contact/Output Supply Type:

    AC/DC

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Relay Action:

    MOMENTARY

  • Relay Form:

    2 FORM C

  • Relay Function:

    DPDT-CO

  • Relay Type:

    POWER/SIGNAL RELAY

  • Sealing:

    HERMETICALLY SEALED

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER/QUICK CONNECT

JMSPD-12XP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lb-in to 1.06 lb-in).
  • Yes, JMSPD-12XP is designed to withstand high-vibration environments. It meets the IEC 61373 Category 1, Class B vibration standard.
  • Yes, JMSPD-12XP is designed to operate in harsh environments. It meets the IEC 60068-2-52 salt spray test and IEC 60068-2-78 high-humidity test standards.
  • The maximum operating temperature range for JMSPD-12XP is -40°C to 125°C (-40°F to 257°F).
  • Yes, JMSPD-12XP is designed for high-reliability and long-term stability. It has a mean time between failures (MTBF) of 1,000,000 hours and is suitable for use in critical applications.
