JN5168-001-M05Z - NXP

Description: NXP - JN5168-001-M05Z - RF MOD, IEEE802.15.4, MED PWR, UFL CONN

Download JN5168-001-M05Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

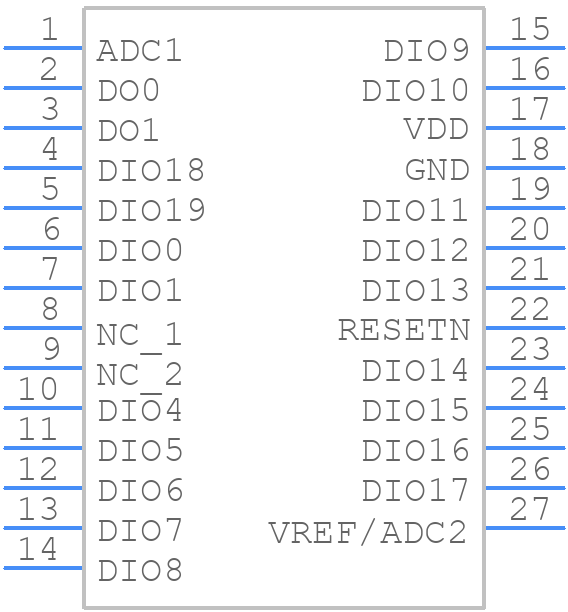

JN5168-001-M05Z - NXP - PCB symbol
click to zoom
PCB Footprints

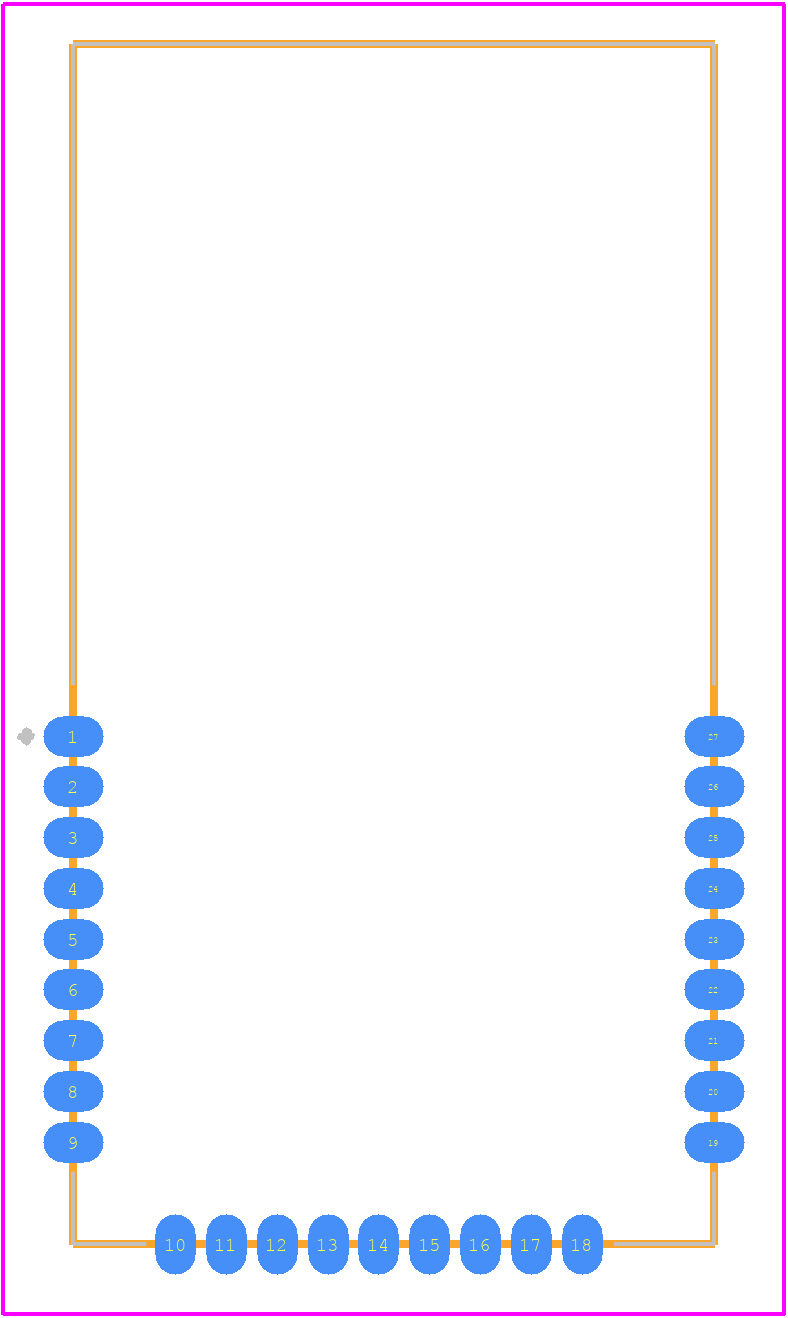

JN5168-001-M05Z - NXP PCB footprint - Other - Other - JN5168-001-M05Z-1
click to zoom
3D Models
JN5168-001-M05Z - NXP - 3D model - Other - JN5168-001-M05Z-1
click to zoom

JN5168-001-M05Z Details

  • Manufacturer Part Number:

    JN5168-001-M05Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN

  • Pin Count:

    40

  • Manufacturer Package Code:

    SOT618-7

  • ECCN Code:

    5A992

  • HTS Code:

    8548.00.00.00

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

JN5168-001-M05Z Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for JN5168-001-M05Z is -40°C to +125°C.
  • To configure the JN5168-001-M05Z for low power consumption, use the low power modes (e.g., sleep mode, hibernate mode) and adjust the clock frequency, voltage, and current consumption according to your application's requirements.
  • The maximum transmit power of the JN5168-001-M05Z is +20 dBm (100 mW).
  • To implement secure communication using the JN5168-001-M05Z, use the built-in AES-128 encryption engine and implement secure protocols such as SSL/TLS or DTLS.
  • The maximum data transfer rate of the JN5168-001-M05Z is 250 kbps.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JN5168-001-M05Z Overview

Use the download button to access the JN5168-001-M05Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JN516, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
