JN5169-001-M00-2Z - NXP

Description: NXP - JN5169-001-M00-2Z - ZIGBEE PROMODULE, IEEE802.15.4, -100DBM

Download JN5169-001-M00-2Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

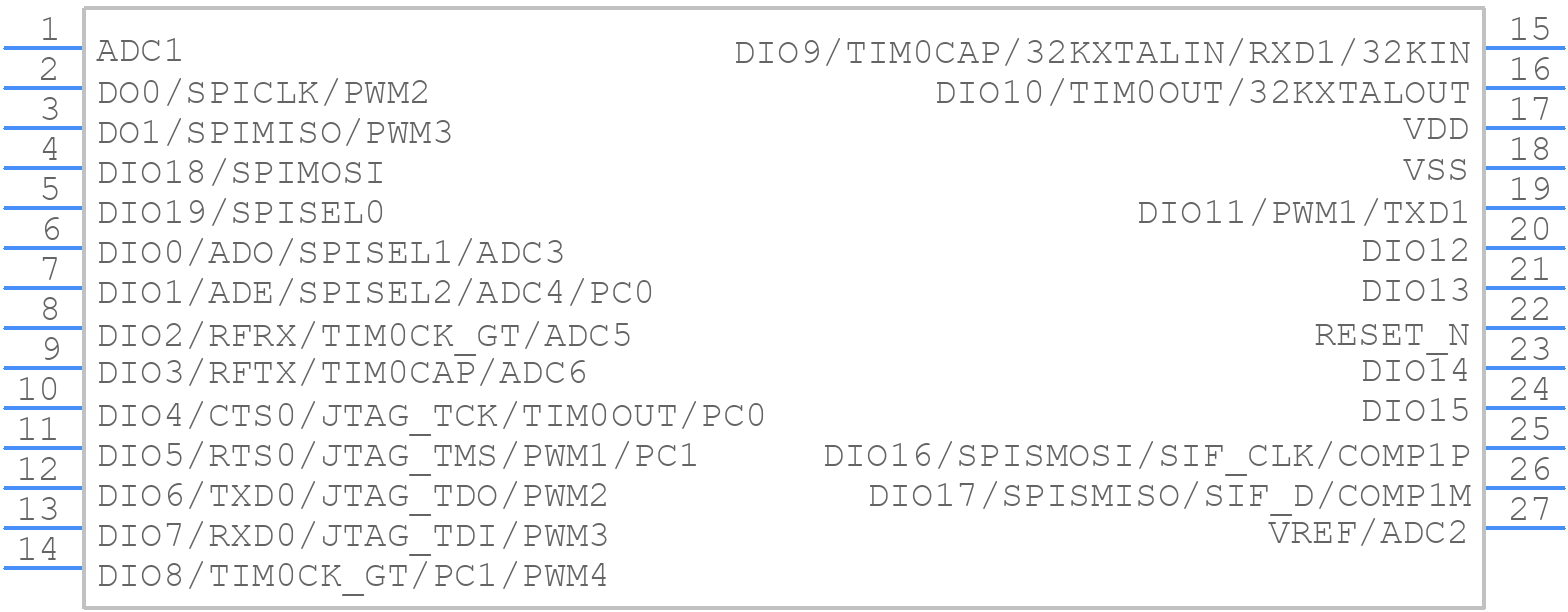

JN5169-001-M00-2Z - NXP - PCB symbol
click to zoom
PCB Footprints

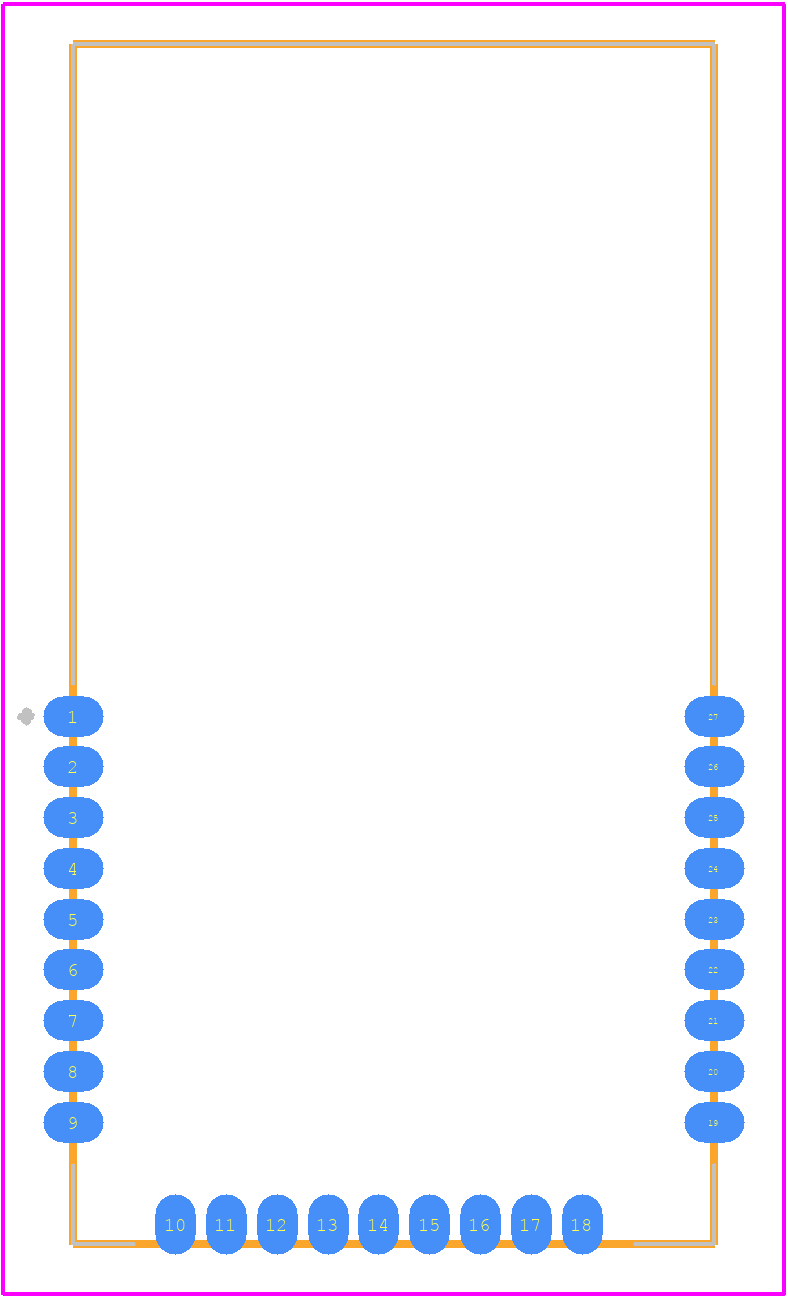

JN5169-001-M00-2Z - NXP PCB footprint - Other - Other - JN5169-001-M00-2Z
click to zoom
3D Models
JN5169-001-M00-2Z - NXP - 3D model - Other - JN5169-001-M00-2Z
click to zoom

JN5169-001-M00-2Z Details

  • Manufacturer Part Number:

    JN5169-001-M00-2Z

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    SOT618-8

  • ECCN Code:

    5A992

  • HTS Code:

    8548.00.00.00

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

JN5169-001-M00-2Z Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the JN5169-001-M00-2Z is -40°C to +125°C.
  • To configure the JN5169-001-M00-2Z for low power consumption, use the Power Management Unit (PMU) to control the voltage regulator, clock frequency, and sleep modes. Additionally, use the Low Power Mode (LPM) to reduce power consumption when the device is not actively transmitting or receiving data.
  • The maximum data transfer rate for the JN5169-001-M00-2Z is 2 Mbps.
  • The JN5169-001-M00-2Z has a built-in AES-128 encryption engine and a True Random Number Generator (TRNG) for secure key generation. Implement security features by using the AES engine for encryption and decryption, and the TRNG for generating secure keys.
  • The maximum flash memory size for the JN5169-001-M00-2Z is 512 KB.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JN5169-001-M00-2Z Overview

Use the download button to access the JN5169-001-M00-2Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JN516, or try a keyword search, such as Microcontrollers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
