JN5179/001K - NXP

Description: IEEE802.15.4 Wireless Module

Download JN5179/001K Model

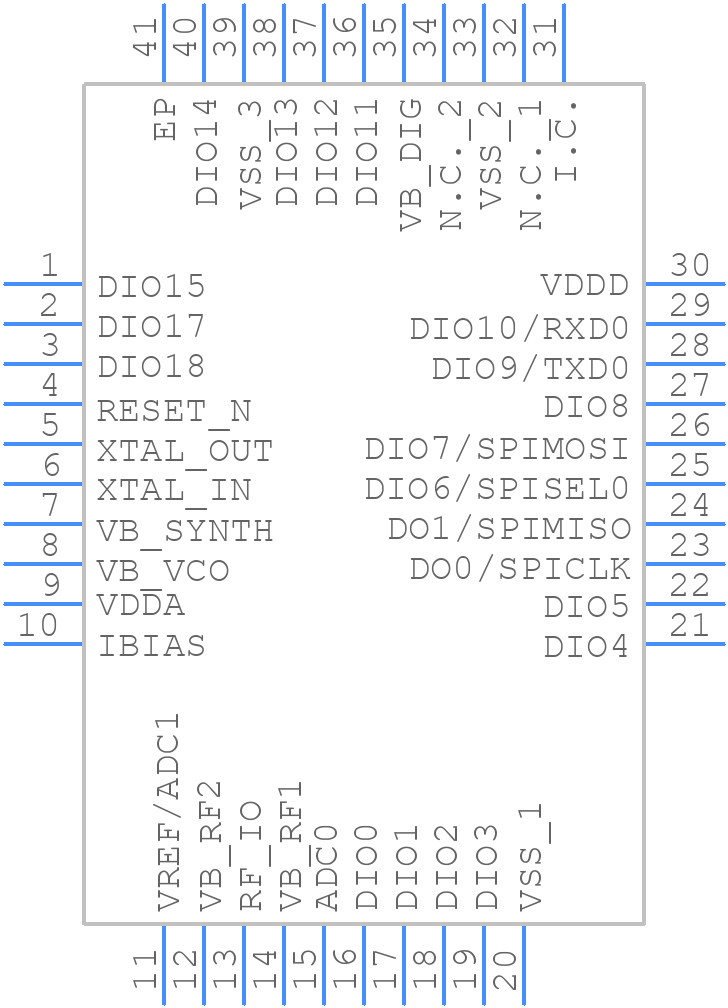

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JN5179/001K - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - HVQFN40
click to zoom
3D Models
JN5179/001K - NXP  - 3D model - Quad Flat No-Lead - HVQFN40
click to zoom

JN5179/001K Details

  • Manufacturer Part Number:

    JN5179/001K

  • Brand Name:

    NXP Semiconductor

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Manufacturer Package Code:

    SOT618-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    5A992

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

JN5179/001K Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for JN5179/001K is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the device can operate at temperatures up to +105°C for short periods, but this may affect its reliability and lifespan.
  • To configure the JN5179/001K for low power consumption, you can use the device's power-saving modes, such as the 'Sleep' mode, which reduces power consumption to approximately 1.5 μA. You can also adjust the clock frequency, disable unnecessary peripherals, and use the 'Hibernate' mode to further reduce power consumption.
  • The maximum data transfer rate of the JN5179/001K's UART interface is 921.6 kbps. However, the actual data transfer rate may be limited by the system's clock frequency, baud rate, and other factors.
  • Yes, the JN5179/001K can be used with an external antenna. In fact, using an external antenna can improve the device's RF performance and range. However, it's essential to follow the recommended antenna design and layout guidelines to ensure optimal performance.
  • To implement secure data transmission using the JN5179/001K, you can use the device's built-in AES encryption engine and implement encryption protocols such as SSL/TLS or DTLS. Additionally, you can use secure key storage and management mechanisms to protect sensitive data.
