JODY-W377-00B - u-blox

Description: Multiprotocol Modules Host-based dual-band Wi-Fi 6 and Bluetooth 5.1 module, 3 pins for external antennas, using NXP Q9098 chip

Download JODY-W377-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JODY-W377-00B - u-blox - PCB symbol
click to zoom
PCB Footprints

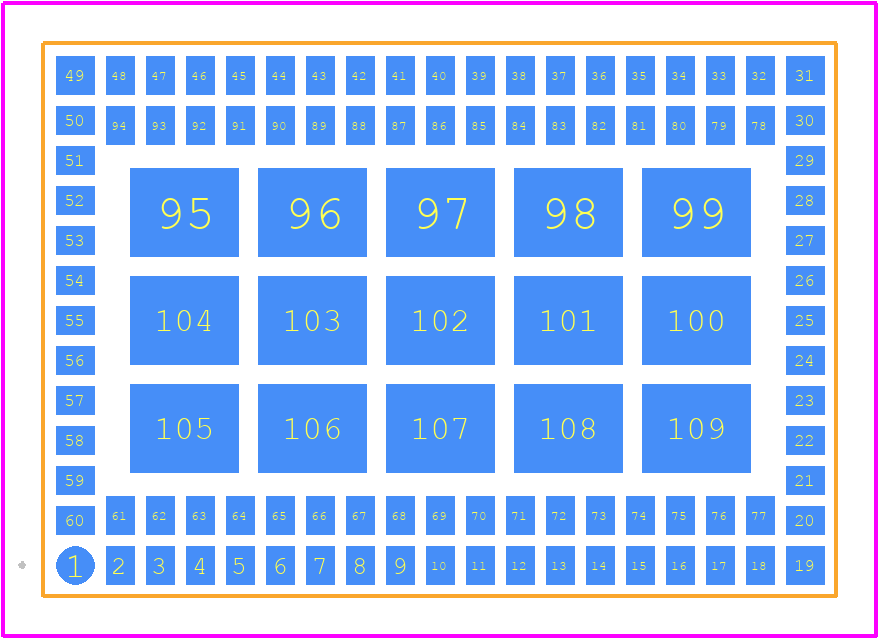

JODY-W377-00B - u-blox PCB footprint - Other - Other - JODY-W377-00B-2
click to zoom
3D Models
JODY-W377-00B - u-blox - 3D model - Other - JODY-W377-00B-2
click to zoom

JODY-W377-00B Details

  • Manufacturer Part Number:

    JODY-W377-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • uPs/uCs/Peripheral ICs Type:

    RFSoC

JODY-W377-00B Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the JODY-W377-00B is -40°C to +85°C, as specified in the datasheet. However, it's essential to note that the module's performance may degrade at extreme temperatures, and it's recommended to operate it within a temperature range of -20°C to +70°C for optimal performance.
  • To configure the JODY-W377-00B for low-power mode, you need to use the u-blox AT command set. Specifically, you can use the AT+PSCFG command to set the power saving mode. For example, 'AT+PSCFG=1' sets the module to enter low-power mode when not in use. Refer to the u-blox AT command documentation for more information.
  • The maximum current consumption of the JODY-W377-00B is approximately 120 mA during transmission and 20 mA during reception, as specified in the datasheet. However, the actual current consumption may vary depending on the specific use case and operating conditions.
  • While it's technically possible to use the JODY-W377-00B with a non-u-blox antenna, it's not recommended. u-blox antennas are specifically designed and optimized for use with their modules, and using a non-u-blox antenna may affect the module's performance, including its sensitivity and accuracy. It's recommended to use a u-blox-approved antenna for optimal performance.
  • To update the firmware on the JODY-W377-00B, you'll need to use the u-blox u-center software tool. This tool allows you to upload new firmware images to the module. Make sure to follow the instructions provided by u-blox and use the correct firmware image for your specific module.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JODY-W377-00B Overview

Use the download button to access the JODY-W377-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JODY-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs
