JPS-2-1N+ - Mini-Circuits

Description: Signal Conditioning PWR SPLTR CMBD / SM / RoHS

Download JPS-2-1N+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

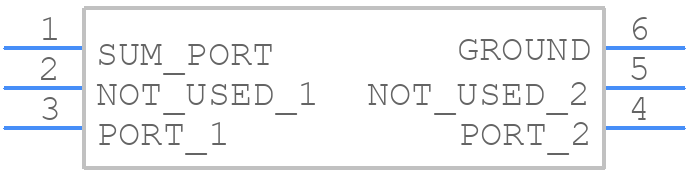

Symbol
JPS-2-1N+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JPS-2-1N+ - Mini-Circuits PCB footprint - Other - Other - BH292
click to zoom
3D Models
JPS-2-1N+ - Mini-Circuits - 3D model - Other - BH292
click to zoom

JPS-2-1N+ Details

  • Manufacturer Part Number:

    JPS-2-1N+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Additional Feature:

    ISOLATION-MIN (DB):20

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    0.5 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    550 MHz

  • Operating Frequency-Min:

    350 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.22

JPS-2-1N+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The JPS-2-1N+ has a maximum junction temperature of 150°C. To handle the heat, ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider adding a heat sink or thermal pad. Also, follow proper PCB design and layout guidelines to minimize thermal resistance.
  • While the datasheet specifies a frequency range of DC to 2 GHz, the JPS-2-1N+ can operate up to 4 GHz with some degradation in performance. However, it's essential to evaluate the device's performance at higher frequencies through simulation or measurement to ensure it meets your specific requirements.
  • Yes, the JPS-2-1N+ can be used in switching applications, but it's crucial to consider the device's switching time, rise and fall times, and ensure that the switching frequency is within the device's capabilities. Additionally, proper PCB design and layout are essential to minimize ringing and overshoot.
  • The JPS-2-1N+ has a nominal impedance of 50 ohms. To match the impedance, use a pi-network or a T-network matching circuit, and consider using simulation tools or impedance matching software to optimize the matching circuit for your specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JPS-2-1N+ Overview

Use the download button to access the JPS-2-1N+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JPS-2, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
