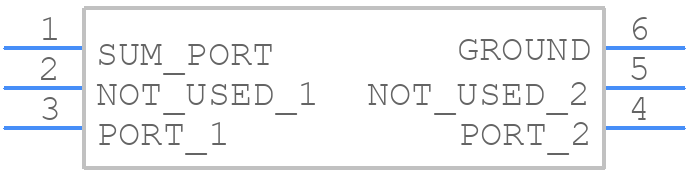

Symbol
JPS-2-1W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JPS-2-1W+ - Mini-Circuits PCB footprint - Other - Other - JPS-2-1W+-1
click to zoom
3D Models
JPS-2-1W+ - Mini-Circuits - 3D model - Other - JPS-2-1W+-1
click to zoom

JPS-2-1W+ Details

  • Manufacturer Part Number:

    JPS-2-1W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    ISOLATION-MIN (DB):16

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    750 MHz

  • Operating Frequency-Min:

    3 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.1
