JPS-2-4+ - Mini-Circuits

Description: RF Power Divider 100 MHz ~ 1 GHz Isolation (Min) 16dB, 5° Imbalance (Max) 6-SMD, J-Lead

Download JPS-2-4+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

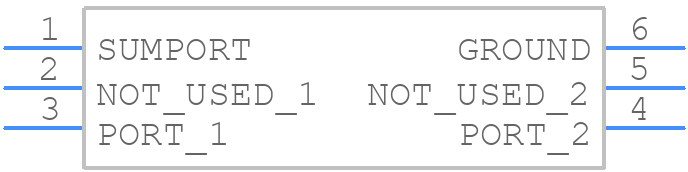

JPS-2-4+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JPS-2-4+ - Mini-Circuits PCB footprint - Other - Other - JPS-2-4+-1
click to zoom
3D Models
JPS-2-4+ - Mini-Circuits - 3D model - Other - JPS-2-4+-1
click to zoom

JPS-2-4+ Details

  • Manufacturer Part Number:

    JPS-2-4+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BH292, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.38

  • Additional Feature:

    ISOLATION-MIN (DB):16

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.53
