JPS-3-1+ - Mini-Circuits

Description: RF Power Divider 5 MHz ~ 300 MHz Isolation (Min) 25dB, 6° Imbalance (Max) 6-SMD, J-Lead

Download JPS-3-1+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

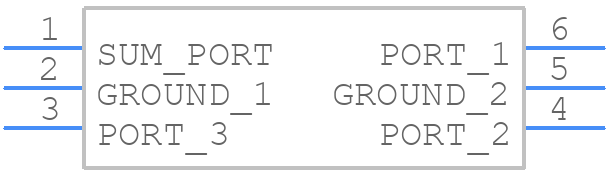

Symbol
JPS-3-1+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
JPS-3-1+ - Mini-Circuits PCB footprint - Other - Other - BH292_2025
click to zoom
3D Models
JPS-3-1+ - Mini-Circuits - 3D model - Other - BH292_2025
click to zoom

JPS-3-1+ Details

  • Manufacturer Part Number:

    JPS-3-1+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.1

  • Additional Feature:

    ISOLATION-MIN (DB):20

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    300 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    SPLITTER AND COMBINER

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.16

JPS-3-1+ Frequently Asked Questions (FAQs)

  • The maximum power handling of the JPS-3-1+ is 1 watt. Exceeding this power limit can cause damage to the device.
  • The JPS-3-1+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network with capacitors and inductors to match the impedance of your system.
  • The operating temperature range of the JPS-3-1+ is -40°C to +85°C. Operating outside this range can affect the device's performance and reliability.
  • The JPS-3-1+ is a commercial-grade device and is not designed for high-reliability or space applications. For such applications, consider using a radiation-hardened or high-reliability version of the device.
  • To troubleshoot issues with the JPS-3-1+, check the power supply voltage, input and output impedance matching, and the device's operating temperature. Also, verify that the device is properly soldered and connected to the PCB.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JPS-3-1+ Overview

Use the download button to access the JPS-3-1+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JPS-3, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
