Panasonic recommends a PCB layout with a minimum of 1.5 mm clearance around the relay, and a ground plane underneath the relay to reduce electromagnetic interference. Additionally, the PCB should be designed to minimize thermal resistance to ensure proper heat dissipation.
To ensure reliability in high-vibration environments, Panasonic recommends using a relay socket or a PCB with a secure mounting mechanism to prevent the relay from shifting or detaching. Additionally, the relay should be soldered securely to the PCB, and any wires or cables connected to the relay should be securely fastened to prevent damage or disconnection.
According to Panasonic, JQ1-B-24V-F can withstand a maximum surge current of 100 A for 10 ms. However, it's recommended to consult the datasheet and application notes for specific guidance on surge current handling.
Yes, JQ1-B-24V-F is designed to meet the requirements of safety-critical applications, such as IEC 61508 and ISO 26262. However, it's essential to consult the datasheet and application notes, and to perform thorough testing and validation to ensure the relay meets the specific safety requirements of the application.
Panasonic provides derating curves in the datasheet, which can be used to determine the maximum allowable current and voltage ratings at elevated temperatures. Additionally, it's recommended to consult the application notes and to perform thermal analysis to ensure the relay operates within its specified temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JQ1-B-24V-F Overview

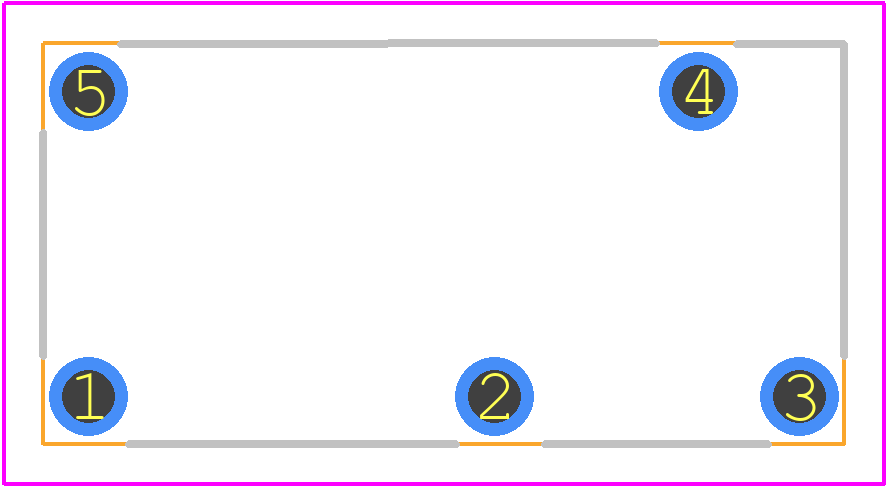

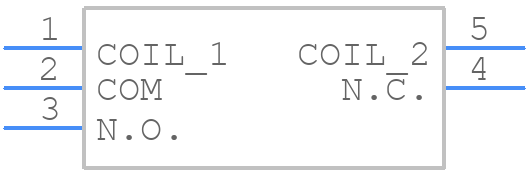

Use the download button to access the JQ1-B-24V-F schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JQ1-B,
or try a keyword search, such as Power/Signal Relays
