JS0104AP4-S footprint, schematic symbol and 3D model by NKK Switches

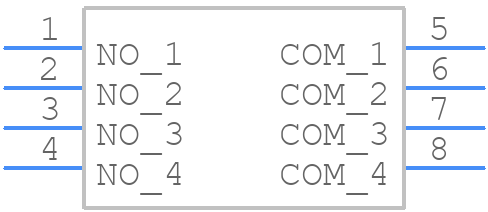

Symbol

PCB Footprints

3D Models

JS0104AP4-S Details

The recommended operating temperature range for the JS0104AP4-S is -20°C to 85°C.
Yes, the JS0104AP4-S is designed to withstand high-vibration environments and is suitable for use in applications where vibration is a concern.
The maximum switching frequency for the JS0104AP4-S is 20 operations per minute.
Yes, the JS0104AP4-S is designed for PCB mounting and can be easily mounted on a printed circuit board.
The minimum order quantity for the JS0104AP4-S varies depending on the supplier, but it is typically 100-500 pieces.

Community Provided

System Verified

Community Approved

Use the download button to access the JS0104AP4-S schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like JS010, or try a keyword search, such as DIP Switches
