JS28F128P33BF70A - Micron

JS28F128P33BF70A Details

• Manufacturer Part Number:

  JS28F128P33BF70A

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

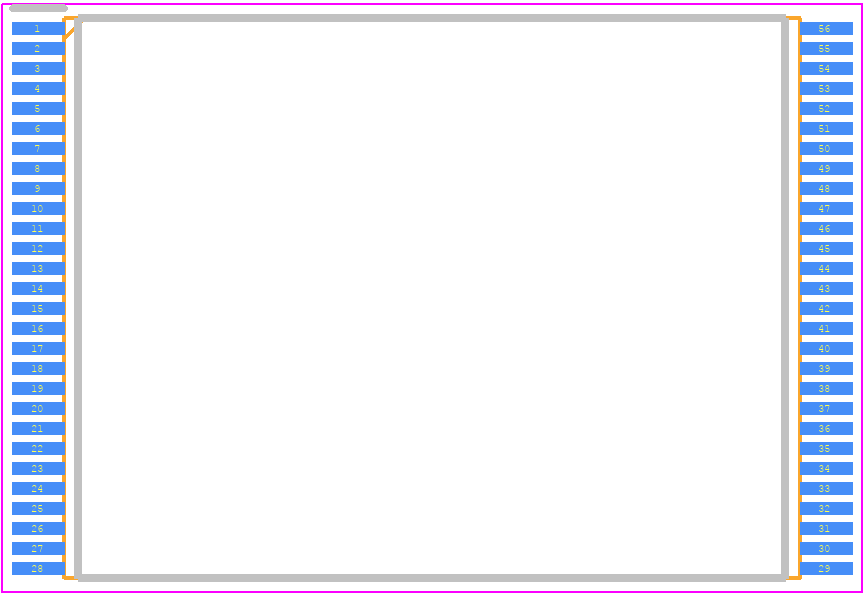

• Package Description:

  TSOP-56

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Micron Technology Inc

• YTEOL:

  0

• Access Time-Max:

  70 ns

• Boot Block:

  BOTTOM

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  NO

• JESD-30 Code:

  R-PDSO-G56

• Length:

  18.4 mm

• Memory Density:

  134217728 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Sectors/Size:

  4,127

• Number of Terminals:

  56

• Number of Words:

  8388608 words

• Number of Words Code:

  8000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  8MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP56,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Page Size:

  8 words

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  260

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Sector Size:

  16K,64K

• Standby Current-Max:

  0.002 A

• Supply Current-Max:

  0.028 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.3 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Toggle Bit:

  NO

• Type:

  NOR TYPE

• Width:

  14 mm

• Write Cycle Time-Max (tWC):

  0.00007 ms
