JS28F256P30T95 - Intel

JS28F256P30T95 Details

• Manufacturer Part Number:

  JS28F256P30T95

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

• Part Package Code:

  TSOP

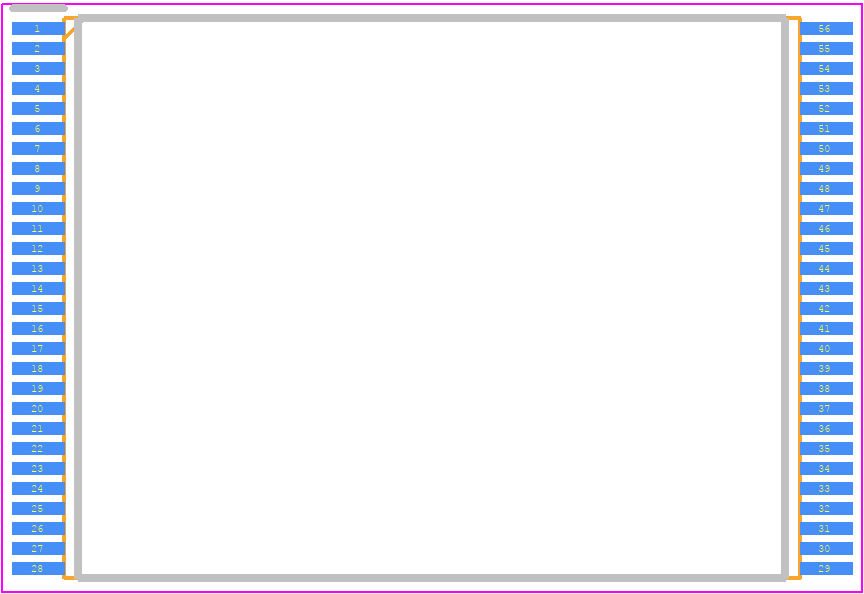

• Package Description:

  14 X 20 MM, LEAD FREE, TSOP-56

• Pin Count:

  56

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Intel Corporation

• Access Time-Max:

  88 ns

• Additional Feature:

  SYNCHRONOUS BURST MODE OPERATION ALSO POSSIBLE

• Boot Block:

  TOP

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  NO

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e3

• Length:

  18.4 mm

• Memory Density:

  268435456 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Number of Functions:

  1

• Number of Sectors/Size:

  4,255

• Number of Terminals:

  56

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  16MX16

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP56,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Page Size:

  4 words

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  1.8 V

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Sector Size:

  16K,64K

• Standby Current-Max:

  0.000005 A

• Supply Current-Max:

  0.051 mA

• Supply Voltage-Max (Vsup):

  2 V

• Supply Voltage-Min (Vsup):

  1.7 V

• Supply Voltage-Nom (Vsup):

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  NO

• Type:

  NOR TYPE

• Width:

  14 mm
