JS4PS-1W+ - Mini-Circuits

Description: RF Power Divider 5 MHz ~ 1 GHz Isolation (Min) 20dB, 12° Imbalance (Max) 14-SMD Module

Download JS4PS-1W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

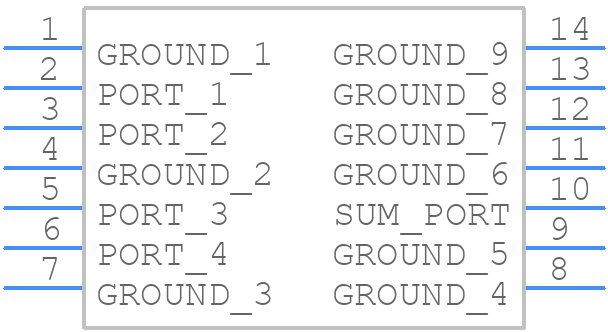

JS4PS-1W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

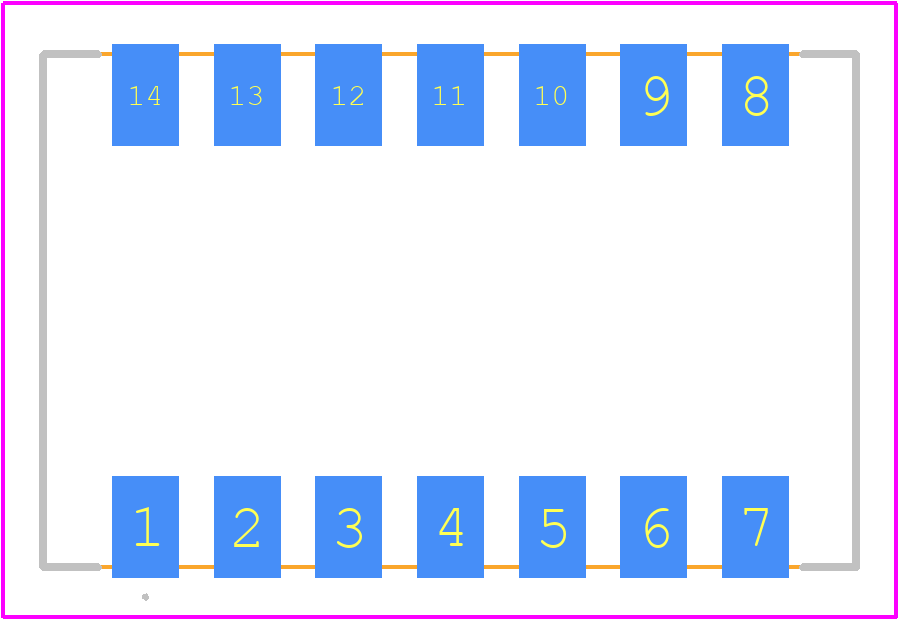

JS4PS-1W+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: BK377
click to zoom
3D Models
JS4PS-1W+ - Mini-Circuits - 3D model - Other - CASE STYLE: BK377
click to zoom

JS4PS-1W+ Details

  • Manufacturer Part Number:

    JS4PS-1W+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BK377, 14 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.25

  • Additional Feature:

    ISOLATION-MIN (DB):15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    26.99 dBm

  • Insertion Loss-Max:

    2.4 dB

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • VSWR-Max:

    1.35

JS4PS-1W+ Frequently Asked Questions (FAQs)

  • The maximum operating temperature for the JS4PS-1W+ is 65°C (149°F).
  • Yes, the JS4PS-1W+ is designed to operate in humid environments, but it's recommended to follow proper sealing and conformal coating procedures to ensure reliability.
  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and reliability.
  • Mini-Circuits provides troubleshooting guides and application notes on their website. Additionally, engineers can contact Mini-Circuits' technical support team for assistance with troubleshooting and debugging.
  • Yes, the JS4PS-1W+ is designed to operate in high-vibration environments, but it's recommended to follow proper mounting and securing procedures to ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JS4PS-1W+ Overview

Use the download button to access the JS4PS-1W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JS4PS, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
