JSE0812S3V3 - XP POWER

Description: Isolated Module DC DC Converter 1 Output 3.3V 1.6A 9V - 18V Input

Download JSE0812S3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

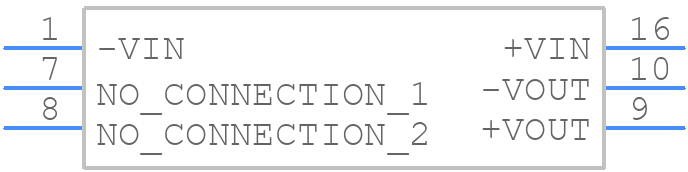

Symbol
JSE0812S3V3 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JSE0812S3V3 - XP POWER PCB footprint - Other - Other - JSE0812S3V3-2
click to zoom
3D Models
JSE0812S3V3 - XP POWER - 3D model - Other - JSE0812S3V3-2
click to zoom

JSE0812S3V3 Details

  • Manufacturer Part Number:

    JSE0812S3V3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-MDMA-P6

  • JESD-609 Code:

    e3

  • Length:

    23.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.366 V

  • Output Voltage-Min:

    3.234 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    8.25 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    5.28 W

  • Trim/Adjustable Output:

    NO

  • Width:

    13.7 mm

JSE0812S3V3 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JSE0812S3V3 is 10,000uF. Exceeding this value may affect the stability of the output voltage.
  • The JSE0812S3V3 is rated for operation up to 85°C. However, derating is required for temperatures above 70°C. It's recommended to consult the datasheet and XP Power's application notes for more information.
  • The recommended input capacitor value for the JSE0812S3V3 is 10uF to 22uF, with a voltage rating of 10V or higher. This ensures stable operation and minimizes input ripple.
  • Yes, the JSE0812S3V3 has built-in overvoltage protection (OVP) that will shut down the output if the output voltage exceeds 3.9V. This protects the load from overvoltage conditions.
  • Yes, you can parallel multiple JSE0812S3V3 modules to increase the output current. However, it's essential to ensure that the input and output connections are properly connected and that the total output current does not exceed the maximum rating of the modules.
