JSPHS-1000+ - Mini-Circuits

Description: Phase Detectors / Shifters PHASE SHF / SURF MT / RoHS

Download JSPHS-1000+ Model

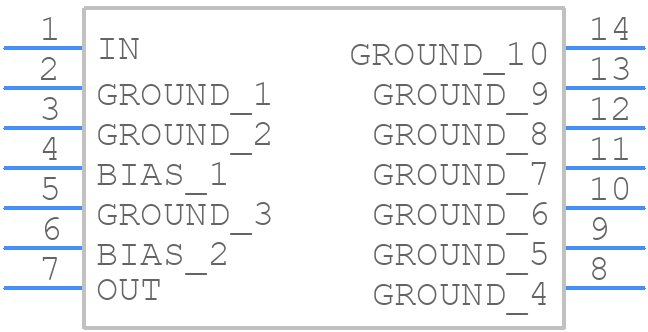

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

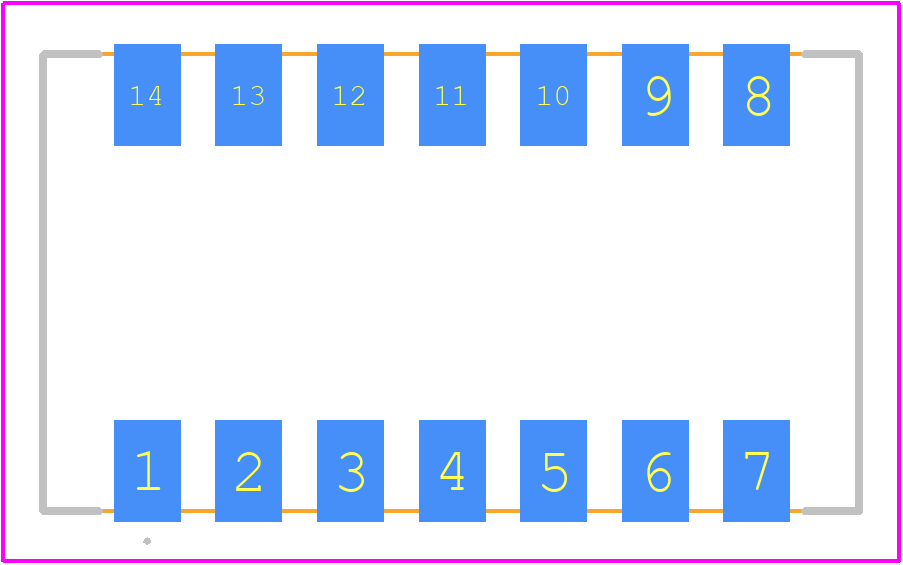

JSPHS-1000+ - Mini-Circuits PCB footprint - Other - Other - JSPHS-1000+-2
click to zoom
3D Models
JSPHS-1000+ - Mini-Circuits  - 3D model - Other - JSPHS-1000+-2
click to zoom

JSPHS-1000+ Details

  • Manufacturer Part Number:

    JSPHS-1000+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BK276, 14 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Insertion Loss-Max:

    2.3 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    1000 MHz

  • Operating Frequency-Min:

    700 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    SMDIP14,.45

  • Phase Shift-Min:

    160 deg

  • RF/Microwave Device Type:

    PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    2.6

JSPHS-1000+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application note AN-60-012, which can be found on their website. It's essential to follow this layout to ensure optimal performance and minimize parasitic effects.
  • The JSPHS-1000+ has a 50 ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. Mini-Circuits also provides a impedance matching calculator tool on their website to help with the design.
  • The maximum power handling of the JSPHS-1000+ is 1 Watt. Exceeding this power limit can cause damage to the device. It's essential to ensure that the input power is within the specified limit to maintain the device's reliability and performance.
  • Yes, the JSPHS-1000+ is designed for high-reliability applications and is available in a compact, hermetically sealed package. However, it's essential to follow proper handling and assembly procedures to ensure the device's reliability and performance in these applications.
  • Common issues with the JSPHS-1000+ include poor return loss, high insertion loss, or oscillations. To troubleshoot, check the PCB layout, impedance matching, and power handling. Ensure that the device is properly soldered and handled. Mini-Circuits also provides application notes and technical support to help with troubleshooting.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JSPHS-1000+ Overview

Use the download button to access the JSPHS-1000+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JSPHS, or try a keyword search, such as RF/Microwave Phase Shifters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.

Parts related to JSPHS-1000+

Showing 0 results

JSPHS-1000+ Alternates

Showing results

Image Part Number Model
Part Image JSPHS-1000 Mini-Circuits

Phase Shifter, 700MHz Min, 1000MHz Max, 160deg Min
