JSPHS-150+ - Mini-Circuits

Description: 100 to 150 MHz, Voltage Variable Phase Shifter

Download JSPHS-150+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

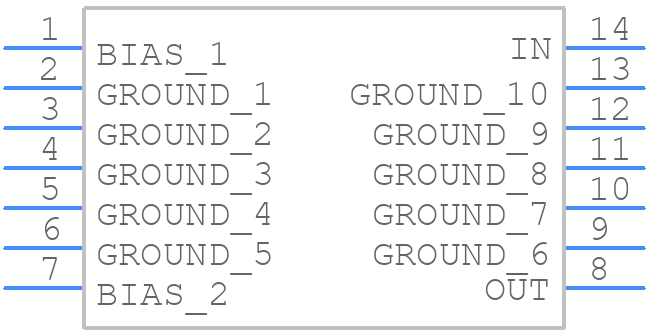

Symbol
JSPHS-150+ - Mini-Circuits - PCB symbol
click to zoom

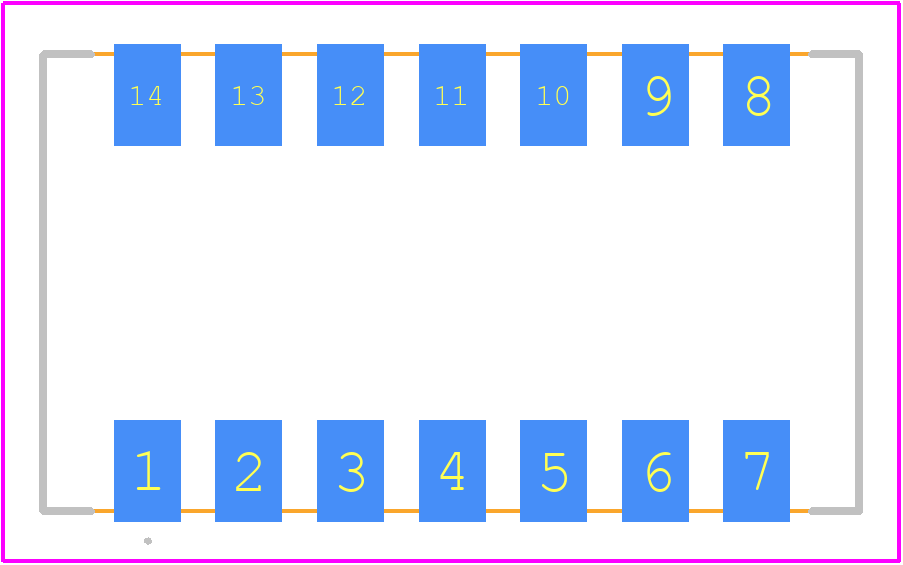

PCB Footprints
JSPHS-150+ - Mini-Circuits PCB footprint - Other - Other - CASE SIZE BK276
click to zoom
3D Models
JSPHS-150+ - Mini-Circuits - 3D model - Other - CASE SIZE BK276
click to zoom

JSPHS-150+ Details

  • Manufacturer Part Number:

    JSPHS-150+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BK276, 14 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    20 dBm

  • Insertion Loss-Max:

    2.5 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    150 MHz

  • Operating Frequency-Min:

    100 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    METAL

  • Package Equivalence Code:

    SMDIP14,.45

  • Phase Shift-Max:

    180 deg

  • Phase Shift-Min:

    180 deg

  • RF/Microwave Device Type:

    PHASE SHIFTER

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn) - with Nickel (Ni) barrier

  • VSWR-Max:

    1.7

JSPHS-150+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The JSPHS-150+ is a high-power device, and proper thermal management is crucial. Ensure good airflow around the device, and consider using a heat sink or thermal pad to dissipate heat. The datasheet provides thermal resistance and power dissipation information to help with thermal design.
  • While the datasheet specifies an operating temperature range of -40°C to +85°C, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a narrower temperature range (e.g., 0°C to 70°C) for optimal performance and longevity.
  • While the JSPHS-150+ is primarily designed for linear applications, it can be used in switching applications with caution. However, the device's switching characteristics, such as rise and fall times, may not be optimized for high-frequency switching. Consult with Mini-Circuits' application engineers or perform thorough testing to ensure the device meets your switching requirements.
  • The JSPHS-150+ has a specific input and output impedance, which must be matched to ensure optimal performance. Use impedance matching networks or consult with Mini-Circuits' application engineers to design a matching circuit that meets your specific requirements.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JSPHS-150+ Overview

Use the download button to access the JSPHS-150+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JSPHS, or try a keyword search, such as RF/Microwave Phase Shifters

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
