JSPQ-80+ - Mini-Circuits

Description: Signal Conditioning Core & Wire 90 Hybrid, 10 - 80 MHz, 50?

Download JSPQ-80+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

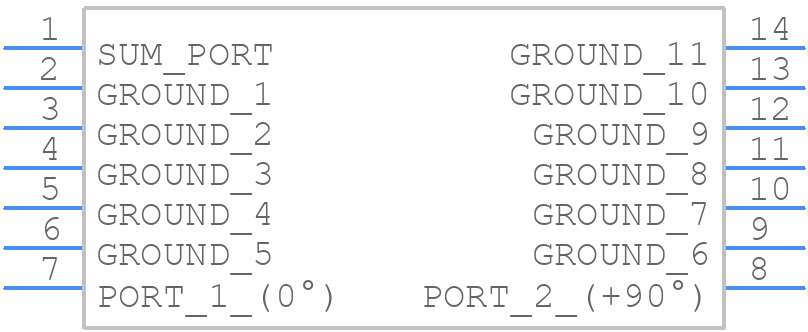

JSPQ-80+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

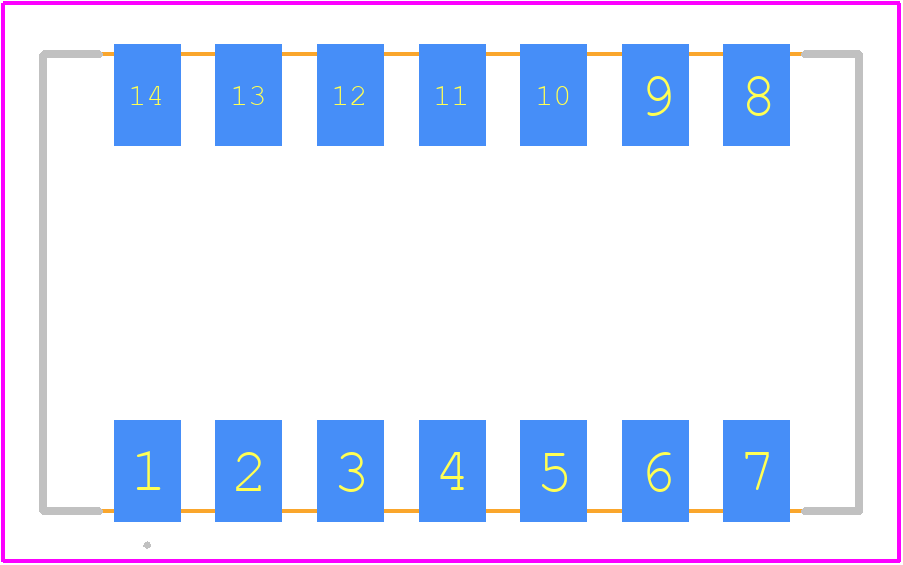

JSPQ-80+ - Mini-Circuits PCB footprint - Other - Other - JSPQ-80+-1
click to zoom
3D Models
JSPQ-80+ - Mini-Circuits - 3D model - Other - JSPQ-80+-1
click to zoom

JSPQ-80+ Details

  • Manufacturer Part Number:

    JSPQ-80+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.4 dB

  • Isolation-Min:

    30 dB

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Frequency-Max:

    80 MHz

  • Operating Frequency-Min:

    10 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Equivalence Code:

    SMDIP14,.45

  • RF/Microwave Device Type:

    90 DEGREE HYBRID COUPLER

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.62

JSPQ-80+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • Impedance matching can be achieved using a combination of series and shunt resistors, capacitors, and inductors. Mini-Circuits provides a impedance matching calculator on their website, which can help you determine the required components for your specific application.
  • The maximum power handling of the JSPQ-80+ is not explicitly stated in the datasheet. However, according to Mini-Circuits, the device can handle up to 1W of continuous power, but this may vary depending on the specific application and operating conditions.
  • Yes, the JSPQ-80+ is designed to meet the requirements of high-reliability and space-constrained applications. It's built with a ruggedized package and has a high mean time between failures (MTBF). However, it's essential to consult with Mini-Circuits' application engineers to ensure the device meets your specific requirements.
  • Mini-Circuits provides a troubleshooting guide on their website, which covers common issues and their solutions. Additionally, their application engineers are available to provide support and guidance for more complex issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JSPQ-80+ Overview

Use the download button to access the JSPQ-80+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JSPQ-, or try a keyword search, such as RF/Microwave Couplers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
