JSPQW-100A+ - Mini-Circuits

Description: Signal Conditioning Core & Wire 90 degree Hybrid, 30 - 100 MHz, 50ohm

Download JSPQW-100A+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

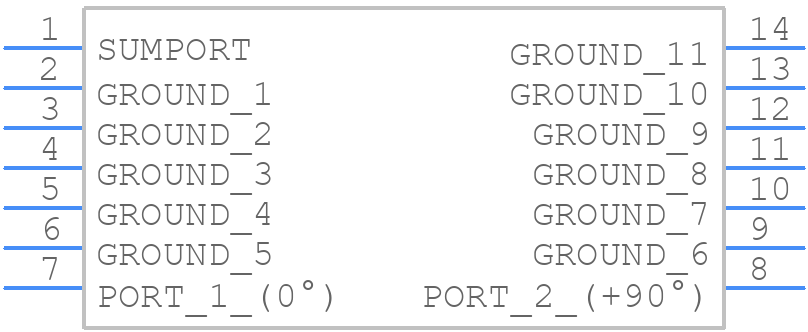

JSPQW-100A+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints

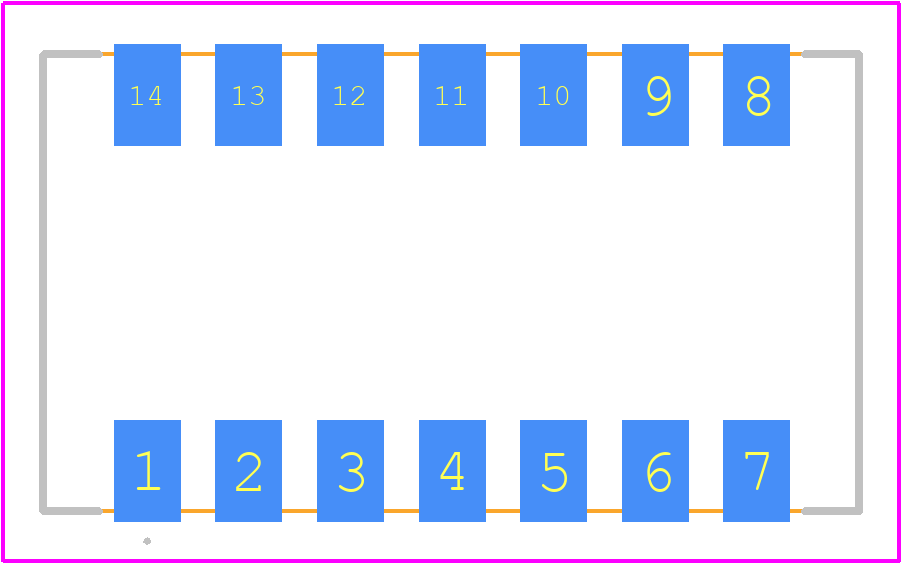

JSPQW-100A+ - Mini-Circuits PCB footprint - Other - Other - CASE STYLE: BK276_2025
click to zoom
3D Models
JSPQW-100A+ - Mini-Circuits - 3D model - Other - CASE STYLE: BK276_2025
click to zoom

JSPQW-100A+ Details

  • Manufacturer Part Number:

    JSPQW-100A+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT, CASE BK276, 14 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    5.9

  • Additional Feature:

    ISOLATION-MIN (DB):30

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    30 dBm

  • Insertion Loss-Max:

    1.1 dB

  • JESD-609 Code:

    e3

  • Operating Frequency-Max:

    100 MHz

  • Operating Frequency-Min:

    30 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • RF/Microwave Device Type:

    COMBINER

  • Terminal Finish:

    TIN OVER NICKEL

  • VSWR-Max:

    1.36

JSPQW-100A+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The JSPQW-100A+ has a maximum junction temperature of 150°C. To handle heat generation, ensure good thermal conductivity between the device and the PCB, use a heat sink if necessary, and maintain good airflow around the device.
  • The JSPQW-100A+ is designed for 50Ω input and output impedance. For optimal performance, ensure that the input and output impedance of the surrounding circuitry is matched to 50Ω to minimize reflections and maximize power transfer.
  • Yes, the JSPQW-100A+ can be used in a push-pull configuration to achieve higher power output. However, ensure that the devices are properly matched and biased, and that the output is properly combined to avoid uneven power distribution.
  • The maximum safe operating voltage for the JSPQW-100A+ is 32V. Exceeding this voltage can cause permanent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JSPQW-100A+ Overview

Use the download button to access the JSPQW-100A+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JSPQW, or try a keyword search, such as RF/Microwave Splitter/Combiners

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
