JSW2-63DR+ - Mini-Circuits

Description: RF Switch ICs SP2T REFL DR 50-OHM 6GHZ RoHS

Download JSW2-63DR+ Model

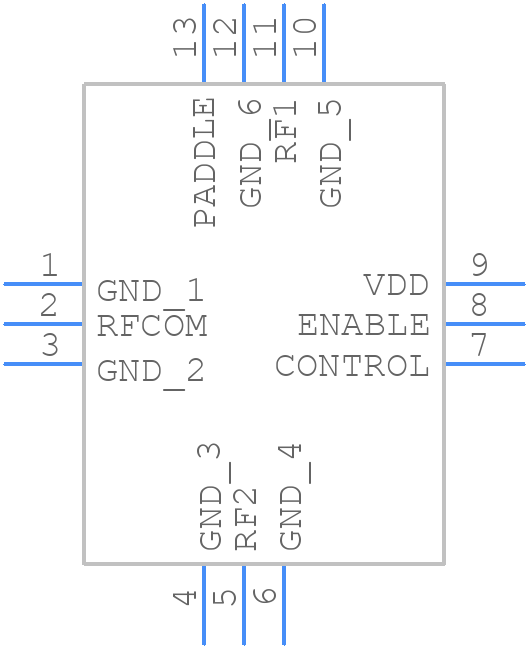

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JSW2-63DR+ - Mini-Circuits PCB footprint - Other - Other - JSW2-63DR+-2
click to zoom
3D Models
JSW2-63DR+ - Mini-Circuits  - 3D model - Other - JSW2-63DR+-2
click to zoom

JSW2-63DR+ Details

  • Manufacturer Part Number:

    JSW2-63DR+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.3

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    18 dB

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • On Time-Nom:

    1.9 µs

  • Operating Frequency-Max:

    6000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    2.3/4.8 V

  • RF/Microwave Device Type:

    SPDT

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Gold (Au)

  • VSWR-Max:

    1.12

JSW2-63DR+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The JSW2-63DR+ has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching calculators or consult with a RF engineer to determine the optimal component values.
  • The JSW2-63DR+ can handle up to 2W of continuous power. However, it's recommended to derate the power handling to 1W or less to ensure reliable operation and minimize the risk of overheating.
  • The JSW2-63DR+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and consider using a heat sink or thermal management system to ensure reliable operation in high-temperature environments.
  • The typical insertion loss of the JSW2-63DR+ is around 0.5 dB, and the typical return loss is around 20 dB. However, these values can vary depending on the specific application and operating frequency.
