JSW4-272DR+ - Mini-Circuits

Description: RF Switch ICs Reflective SP4T, SMT Solid State Switch, 5 - 2700 MHz, 50 ohms

Download JSW4-272DR+ Model

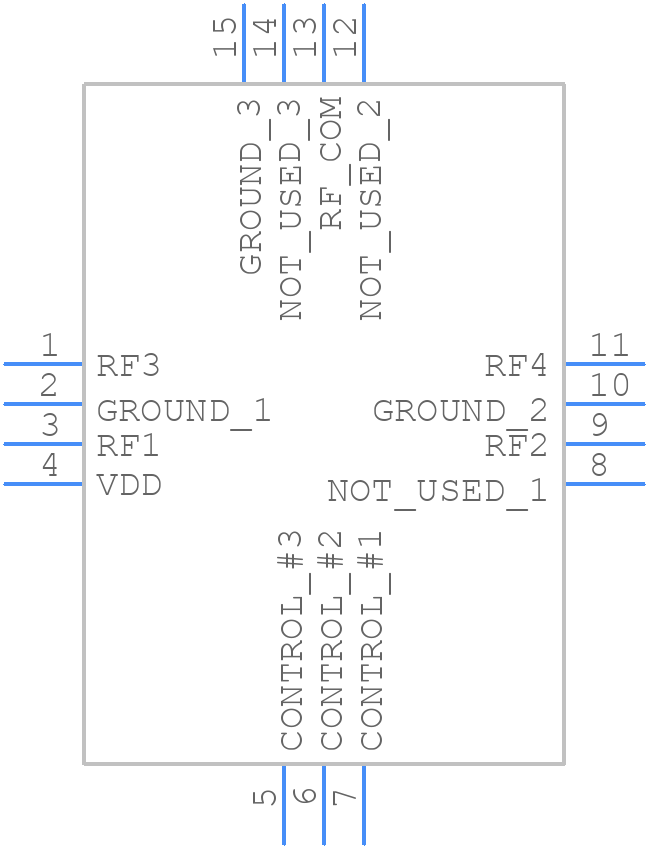

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JSW4-272DR+ - Mini-Circuits PCB footprint - Other - Other - JSW4-272DR+-3
click to zoom
3D Models
JSW4-272DR+ - Mini-Circuits  - 3D model - Other - JSW4-272DR+-3
click to zoom

JSW4-272DR+ Details

  • Manufacturer Part Number:

    JSW4-272DR+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • Additional Feature:

    HIGH ISOLATION

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Input Power-Max (CW):

    36.99 dBm

  • Insertion Loss-Max:

    0.8 dB

  • Isolation-Min:

    25 dB

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • On Time-Nom:

    1.9 µs

  • Operating Frequency-Max:

    2700 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC14,.08SQ

  • Port Termination:

    REFLECTIVE

  • Power Supplies:

    3 V

  • RF/Microwave Device Type:

    SP4T

  • Surface Mount:

    YES

  • VSWR-Max:

    1.4

JSW4-272DR+ Frequently Asked Questions (FAQs)

  • A multi-layer PCB with a solid ground plane and a low-impedance path to the chassis is recommended. Ensure that the device is mounted close to the PCB ground plane and that the ground pins are connected to the PCB ground plane using vias.
  • Mount the device on a heat sink or a metal plate with a thermal conductivity of at least 1 W/m-K. Ensure good thermal contact between the device and the heat sink using a thermal interface material. Keep the ambient temperature below 60°C.
  • The recommended input and output impedance matching is 50 ohms. Use a pi-network or a T-network topology with high-Q components to achieve optimal impedance matching.
  • Check the PCB layout and grounding scheme for any defects or inconsistencies. Verify that the input and output impedance matching is correct. Check for any signs of overheating or thermal damage. Consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the JSW4-272DR+ can be used in a push-pull or balanced configuration to improve output power and reduce even-order harmonics. Consult the datasheet and application notes for specific configuration guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JSW4-272DR+ Overview

Use the download button to access the JSW4-272DR+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JSW4-, or try a keyword search, such as RF/Microwave Switches

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
