XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the JTD2024D05 is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is rigid enough to prevent flexing or resonance that could affect the module's performance.
The JTD2024D05 has an internal input filter that meets the requirements of EN55022 Class A. However, to ensure compliance with your system's EMC requirements, you may need to add additional external filtering components. Consult XP Power's application notes and EMC guidelines for more information.
XP Power recommends keeping the output cables as short as possible to minimize voltage drops and ensure reliable operation. However, if longer cables are necessary, the maximum recommended length is 12 inches (30 cm) for the 24V output and 6 inches (15 cm) for the 5V output.
Yes, the JTD2024D05 can be used in a redundant or N+1 configuration. However, you'll need to ensure that the modules are properly synchronized and that the system is designed to handle the increased power and heat dissipation. Consult XP Power's application notes and technical support for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTD2024D05 Overview

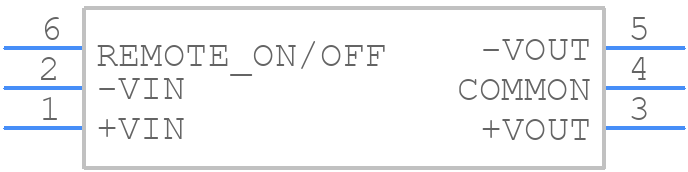

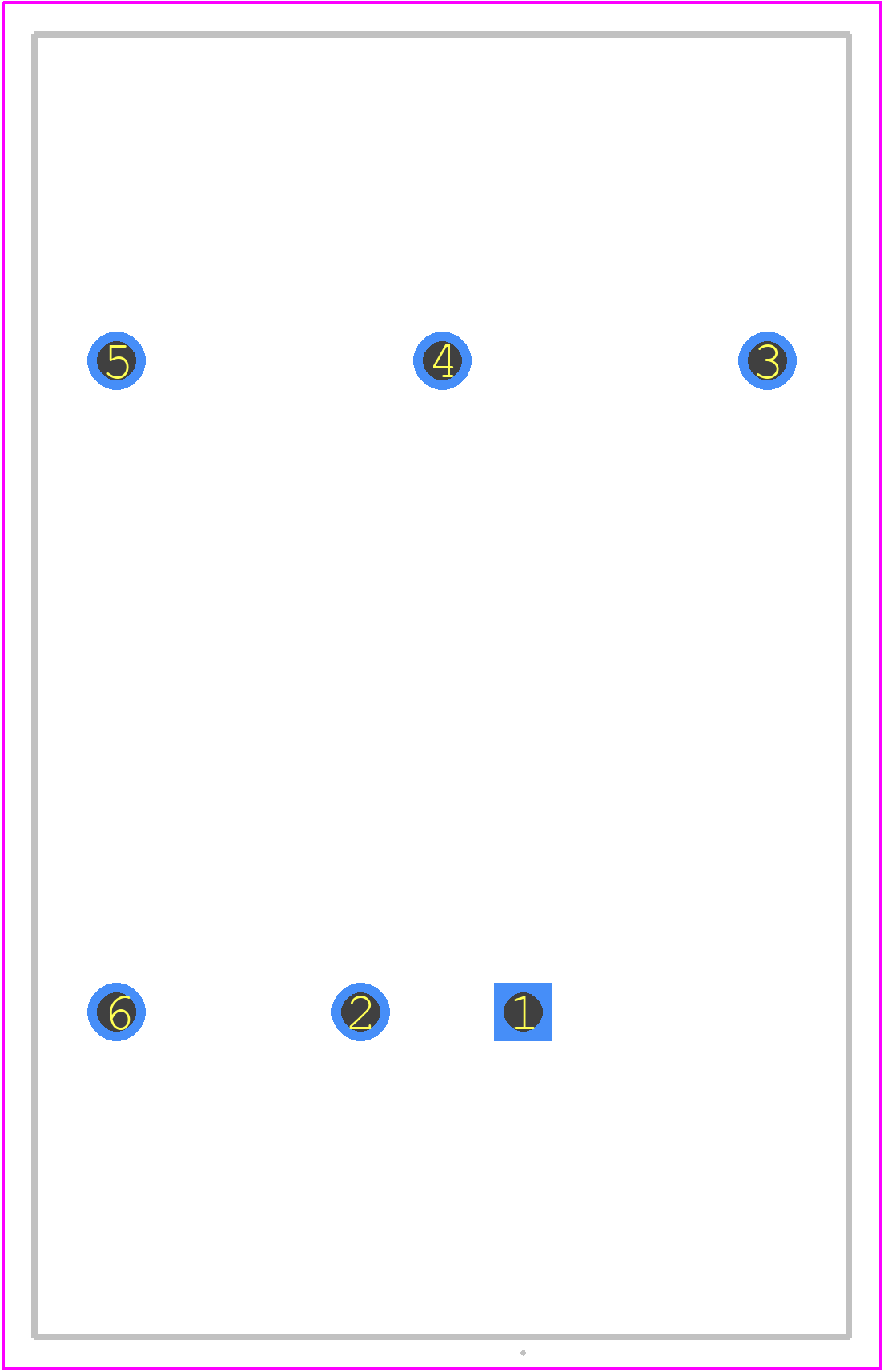

Use the download button to access the JTD2024D05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTD20,
or try a keyword search, such as Power Supply Modules
