JTD2048S05 footprint, schematic symbol and 3D model by XP POWER

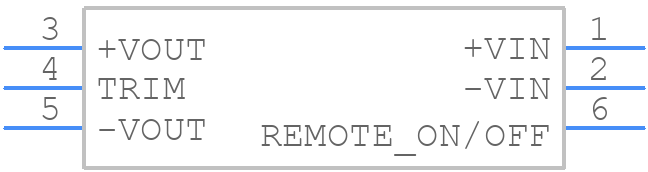

Symbol

click to zoom

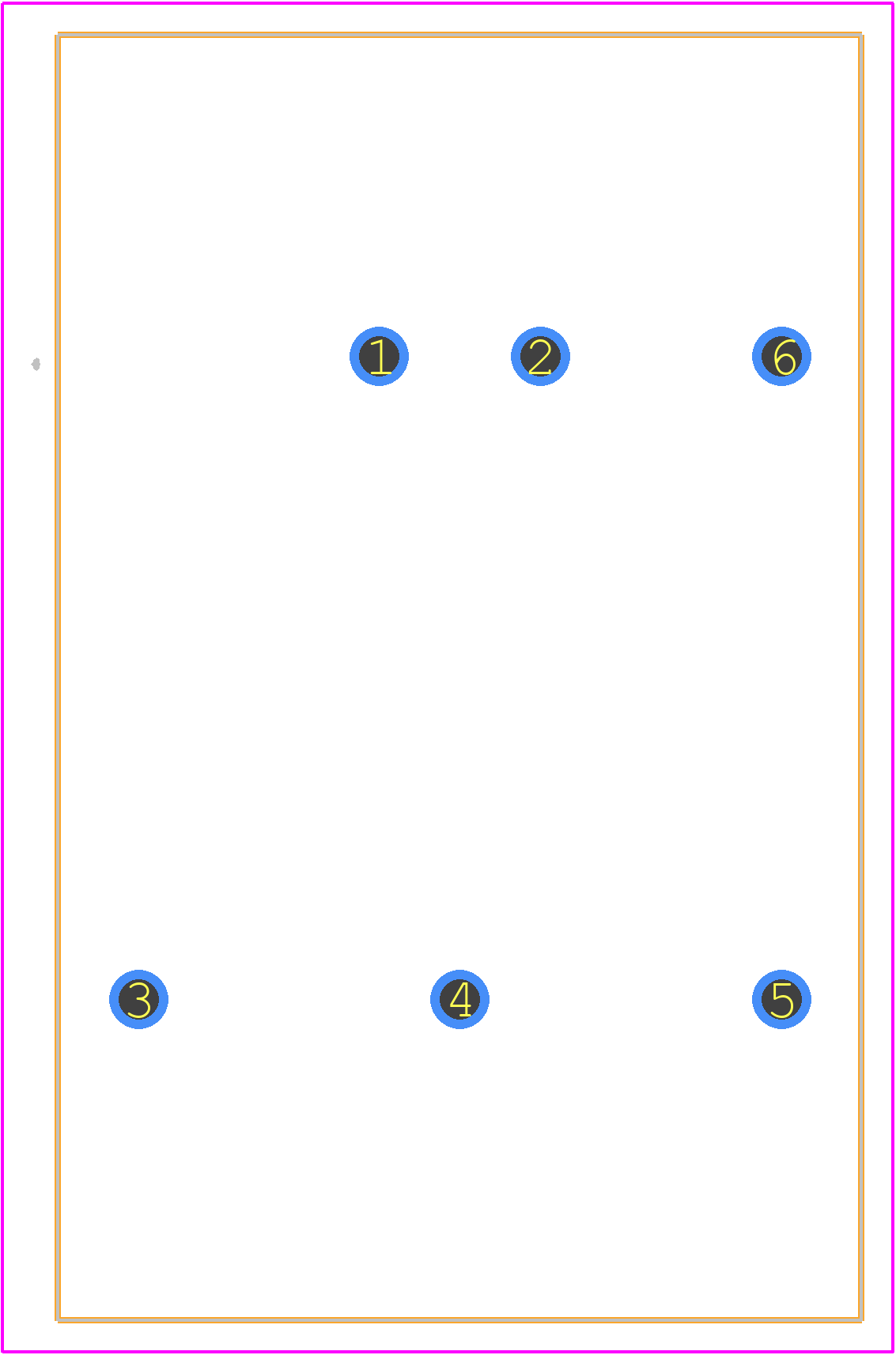

PCB Footprints

JTD2048S05 - XP POWER PCB footprint - Other - Other - JTD2048S05-6

click to zoom

3D Models

JTD2048S05 - XP POWER - 3D model - Other - JTD2048S05-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JTD2048S05
Part Number JTD2048S05
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - JTD2048S05-6
Released Date Jul 3, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JTD2048S05 Details

Manufacturer Part Number:
JTD2048S05
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
PACKAGE-6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
8
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Approvals:
CE, EN, UL
Efficiency (Main Output):
90%
Input Voltage-Max:
75 V
Input Voltage-Min:
18 V
Input Voltage-Nom:
48 V
JESD-30 Code:
R-MDMA-P6
Length:
40.64 mm
Line Regulation-Max:
0.5%
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
100 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
4 A
Output Voltage-Max:
5.5 V
Output Voltage-Min:
4.5 V
Output Voltage-Nom:
5 V
Package Body Material:
METAL
Package Code:
DMA
Package Equivalence Code:
MODULE,6LEAD,0.8
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Protections:
OVER LOAD; OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.02651 Vrms
Screening Level:
UL 62328-1
Seated Height-Max:
10.9 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
20 W
Trim/Adjustable Output:
YES
Warm-up Time:
0.03 s
Width:
25.4 mm

JTD2048S05 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Use a suitable input voltage regulator or a voltage stabilizer to ensure the input voltage to the JTD2048S05 stays within the recommended range of 36-60V. This will prevent damage to the module and ensure reliable operation.
The maximum output capacitance recommended by XP Power is 220uF. Exceeding this value may cause instability or oscillation in the output voltage. It's essential to follow the recommended output capacitance to ensure reliable operation and prevent damage to the module.
The JTD2048S05 is rated for operation up to 80°C ambient temperature. However, derating the output power is necessary for temperatures above 60°C. Consult the datasheet for derating curves and ensure the module is properly cooled to prevent overheating.
To troubleshoot issues with the output voltage, check the input voltage, output load, and ambient temperature. Ensure the input voltage is within the recommended range, the output load is within the specified current rating, and the ambient temperature is within the operating range. Also, verify the PCB layout and thermal design are correct.
