JTF0824S05 - XP POWER

Description: XP Power Through Hole 8W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.6kV dc, Vout 5V dc

Download JTF0824S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

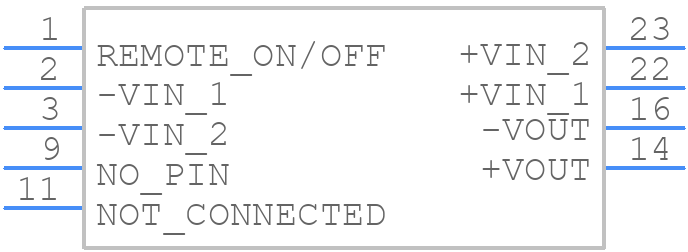

Symbol
JTF0824S05 - XP POWER - PCB symbol
click to zoom

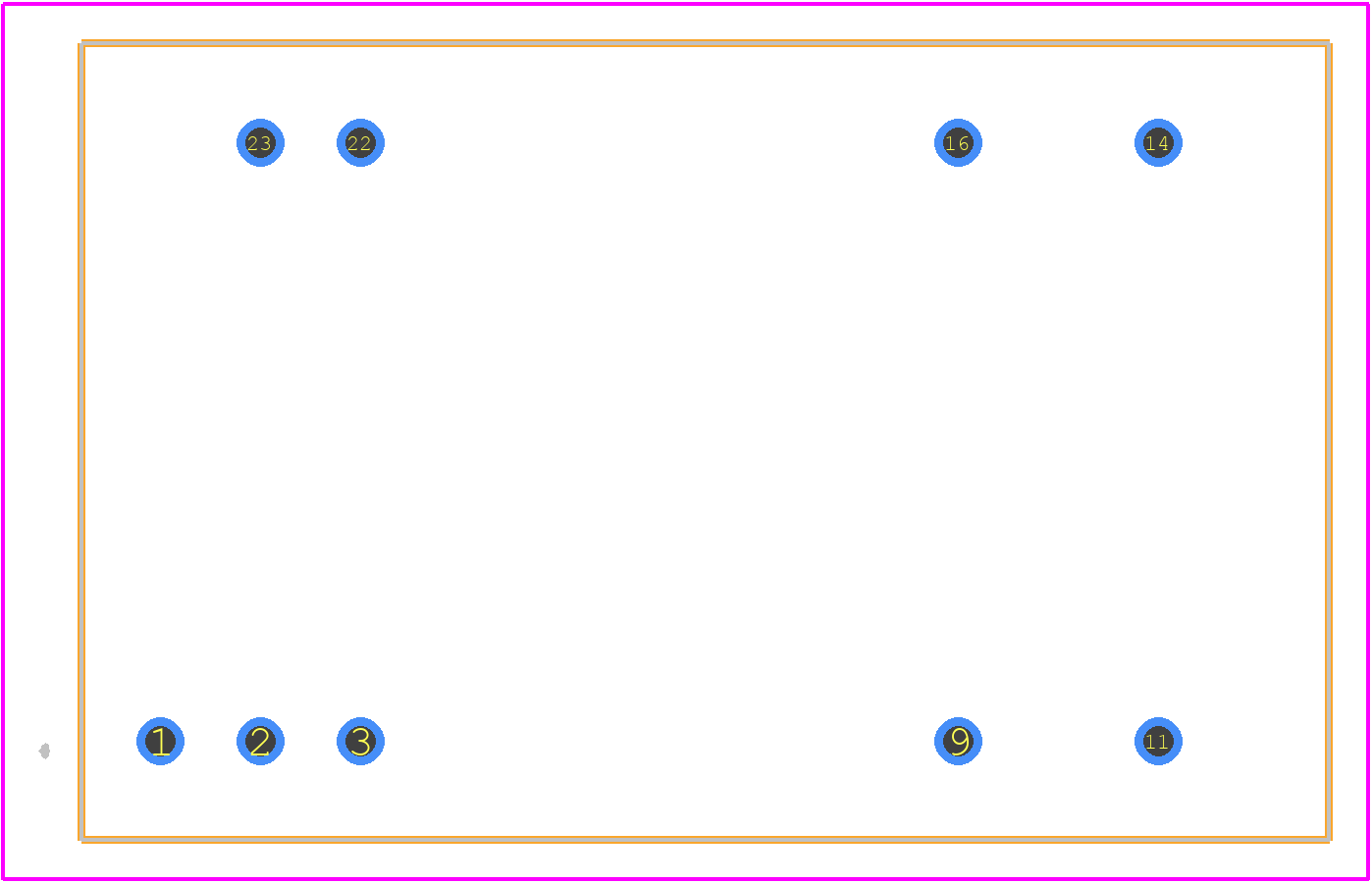

PCB Footprints
JTF0824S05 - XP POWER PCB footprint - Other - Other - JTF0824S05-2
click to zoom
3D Models
JTF0824S05 - XP POWER - 3D model - Other - JTF0824S05-2
click to zoom

JTF0824S05 Details

  • Manufacturer Part Number:

    JTF0824S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    8 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JTF0824S05 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the JTF0824S05 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
  • The JTF0824S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. Ensure you follow the recommended layout and installation guidelines to maintain these certifications.
  • The recommended input fuse value for the JTF0824S05 is 2A slow-blow type, but this may vary depending on the specific application and input voltage. Consult the datasheet and XP Power's application notes for more information.
  • Yes, the JTF0824S05 is designed to withstand high-vibration environments. It meets the IEC 60068-2-6 vibration test standard, with a vibration amplitude of 1.5 mm and a frequency range of 10-2000 Hz.
  • To calculate the power dissipation of the JTF0824S05, use the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current. Consult the datasheet for more information on power dissipation and thermal management.
