XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure the input voltage stays within the recommended range, use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, consider the voltage drop across the input cables and connectors to prevent overvoltage or undervoltage conditions.
The maximum capacitance on the output depends on the specific application and the desired output voltage ripple. As a general guideline, XP Power recommends limiting the output capacitance to 10uF or less to prevent oscillation and ensure stable operation.
Yes, the JTF1024D05 is designed for high-reliability applications. However, it's essential to follow XP Power's recommended guidelines for derating, thermal management, and input voltage regulation to ensure the module operates within its specified parameters.
To troubleshoot issues with the output voltage or current, first verify the input voltage and ensure it's within the recommended range. Then, check the output voltage and current using a multimeter or an oscilloscope. If the issue persists, consult XP Power's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTF1024D05 Overview

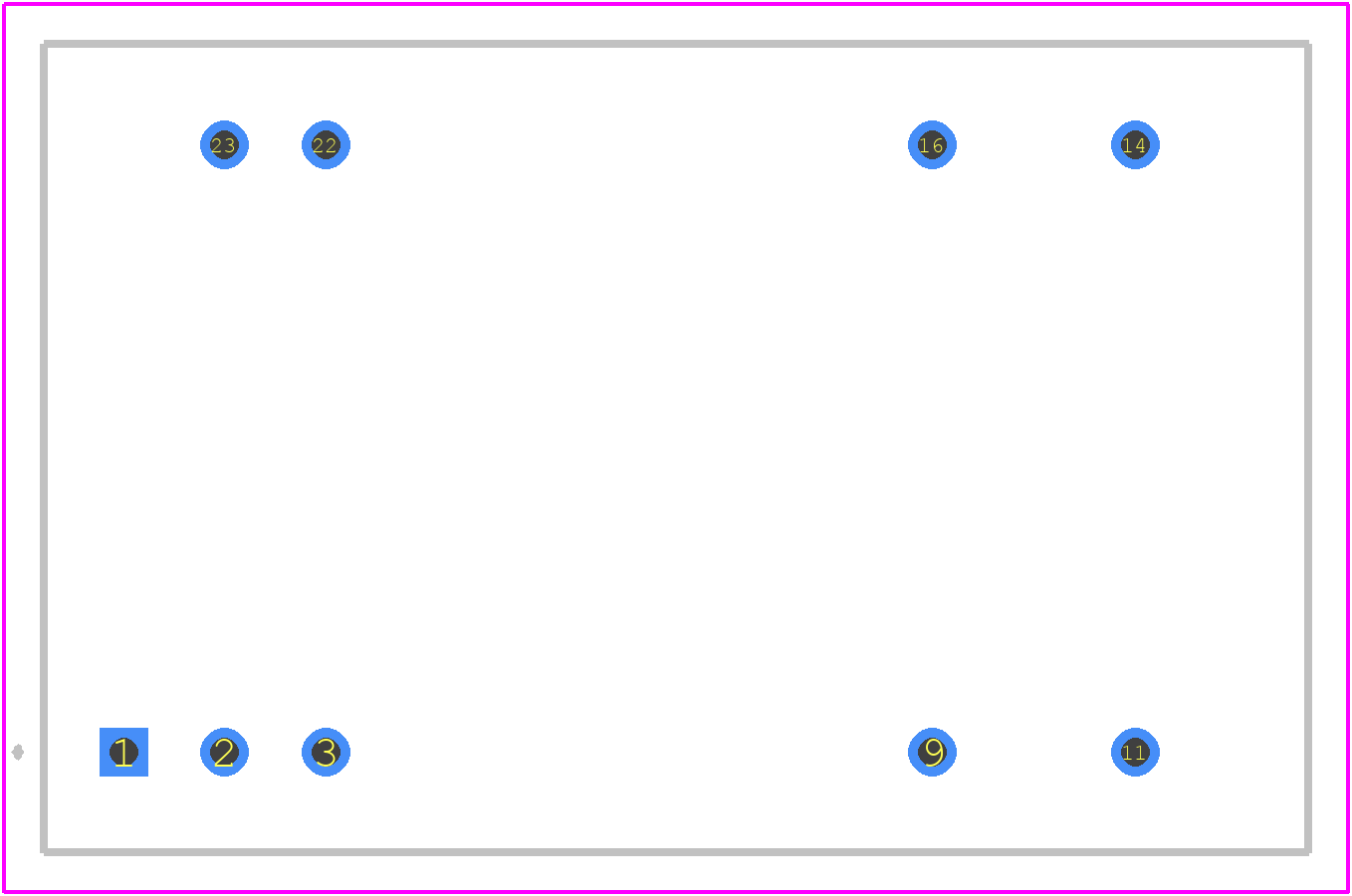

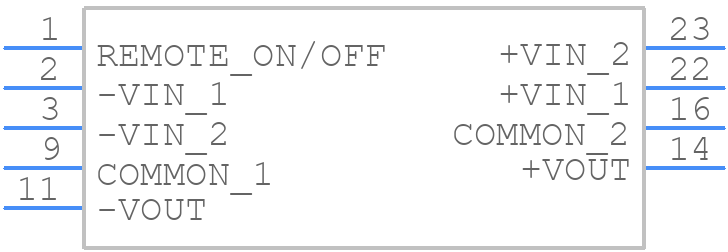

Use the download button to access the JTF1024D05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTF10,
or try a keyword search, such as Power Supply Modules
