XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure the input voltage stays within the recommended range, use a suitable input filter or a voltage regulator to regulate the input voltage. Additionally, consider the voltage drop across the input cables and connectors to prevent overvoltage or undervoltage conditions.
The maximum capacitance on the output depends on the specific application and the desired output voltage ripple. As a general guideline, XP Power recommends limiting the output capacitance to 10uF or less to prevent oscillation and ensure stable operation.
While the JTF1024S12 is rated for operation up to 80°C, it's essential to consider the derating curves and thermal management to ensure reliable operation in high-temperature environments. Consult with XP Power's application engineers for specific guidance on high-temperature applications.
To troubleshoot output voltage issues, first, verify the input voltage and ensure it's within the recommended range. Check the output voltage sense lines for proper connection and ensure the module is properly configured. If issues persist, consult XP Power's application notes and troubleshooting guides or contact their technical support team.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTF1024S12 Overview

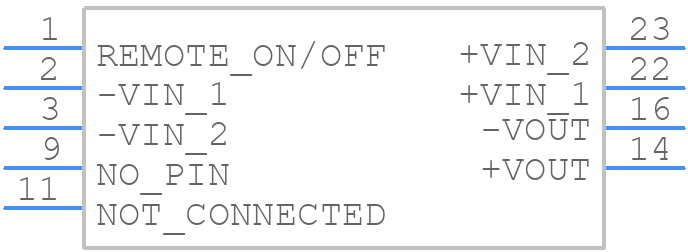

Use the download button to access the JTF1024S12 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like JTF10,
or try a keyword search, such as Power Supply Modules
