JTF1224S05 - XP POWER

Description: XP Power Through Hole 12W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.6kV dc, Vout 5V dc

Download JTF1224S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

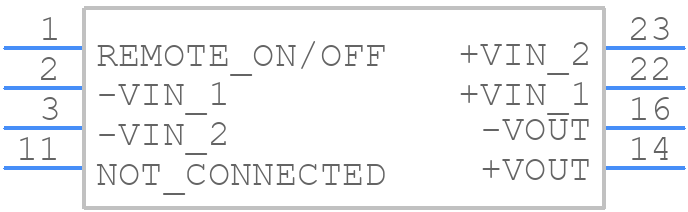

JTF1224S05 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JTF1224S05 - XP POWER PCB footprint - Other - Other - JTF1224S05-1
click to zoom
3D Models
JTF1224S05 - XP POWER - 3D model - Other - JTF1224S05-1
click to zoom

JTF1224S05 Details

  • Manufacturer Part Number:

    JTF1224S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.06 V

  • Output Voltage-Min:

    4.94 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    NICKEL

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JTF1224S05 Frequently Asked Questions (FAQs)

  • XP Power recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents and ensure a smooth start-up.
  • The maximum capacitance on the output of the JTF1224S05 is 2200uF. Exceeding this value may affect the stability of the converter.
  • While the JTF1224S05 is rated for operation up to 80°C, XP Power recommends derating the output power by 2.5% per °C above 60°C to ensure reliable operation in high-temperature environments.
  • To troubleshoot output voltage issues, check the input voltage, output load, and PCB layout. Ensure the input voltage is within the specified range, the output load is within the recommended range, and the PCB layout follows XP Power's recommended guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTF1224S05 Overview

Use the download button to access the JTF1224S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTF12, or try a keyword search, such as Power Supply Modules
