JTF1224S12 - XP POWER

Description: XP Power Through Hole 12W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.6kV dc, Vout 12V dc

Download JTF1224S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

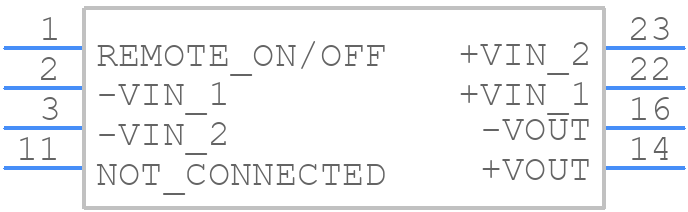

JTF1224S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints
JTF1224S12 - XP POWER PCB footprint - Other - Other - JTF1224S12-1.
click to zoom
3D Models
JTF1224S12 - XP POWER - 3D model - Other - JTF1224S12-1.
click to zoom

JTF1224S12 Details

  • Manufacturer Part Number:

    JTF1224S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.144 V

  • Output Voltage-Min:

    11.856 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    12 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm
