JTF1524S12 - XP POWER

Description: XP Power Through Hole 15W Isolated DC-DC Converter, Vin 9 → 36 V dc, I/O isolation 1.6kV dc, Vout 12V dc

Download JTF1524S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

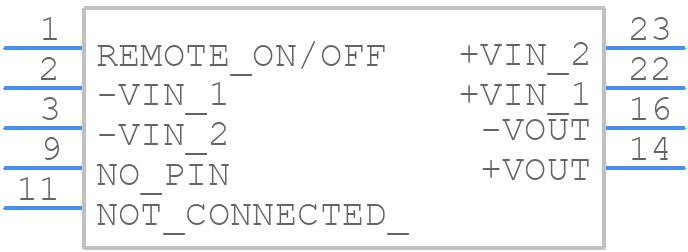

JTF1524S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

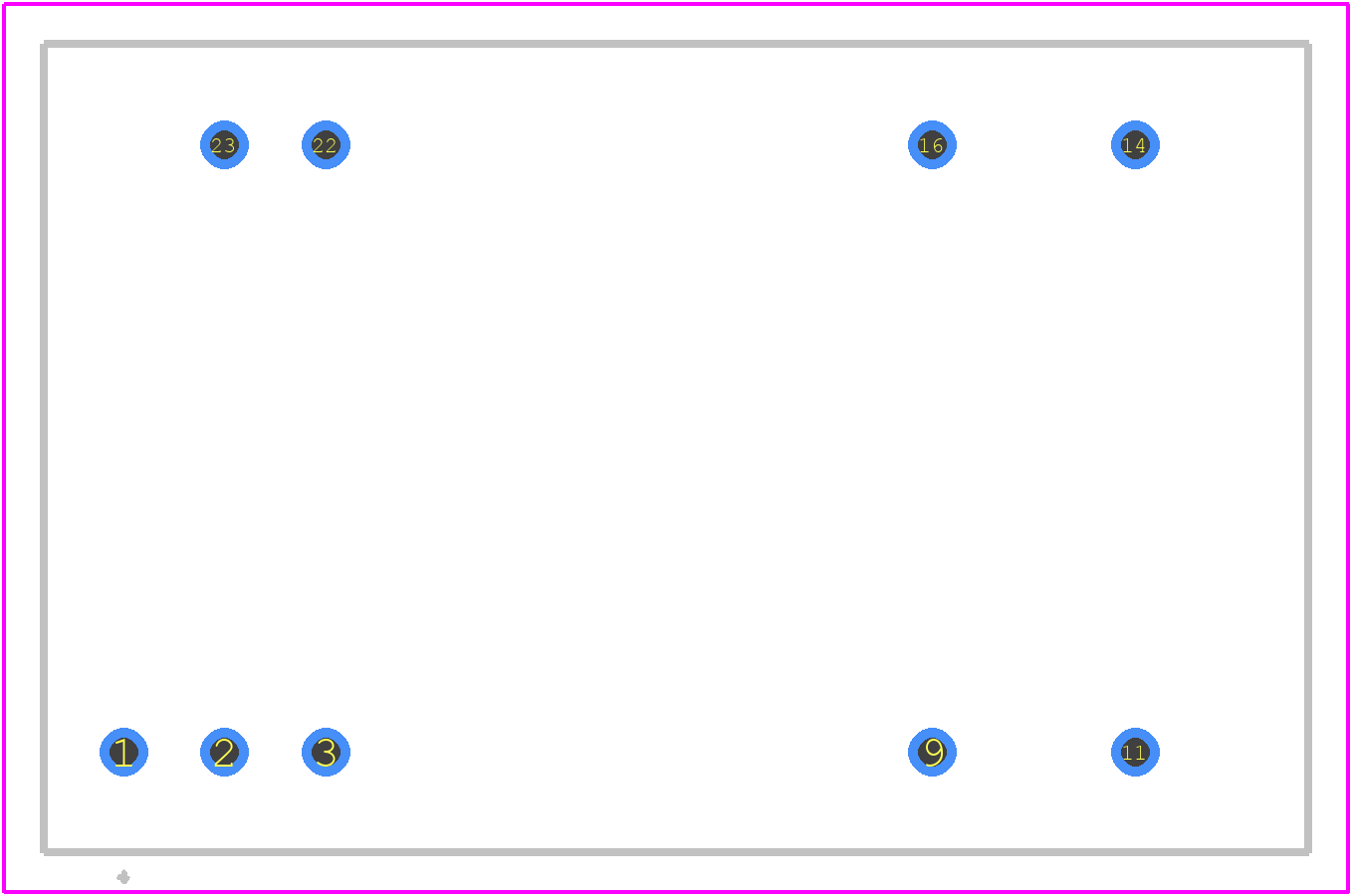

JTF1524S12 - XP POWER PCB footprint - Other - Other - JTF1524S12-2
click to zoom
3D Models
JTF1524S12 - XP POWER - 3D model - Other - JTF1524S12-2
click to zoom

JTF1524S12 Details

  • Manufacturer Part Number:

    JTF1524S12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MODULE

  • Pin Count:

    24/9

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P9

  • Length:

    31.75 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    12.12 V

  • Output Voltage-Min:

    11.88 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.32 mm

JTF1524S12 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module is also recommended.
  • To ensure reliable start-up, XP Power recommends a soft-start circuit or a ramp-up of the input voltage to prevent inrush currents. Additionally, a minimum input capacitance of 10uF is recommended.
  • The maximum allowed capacitance on the output is 220uF. Exceeding this value may cause instability or oscillation in the converter.
  • Yes, the JTF1524S12 can be used in a redundant configuration, but it's essential to ensure that the modules are synchronized to prevent oscillation. XP Power recommends using a synchronization signal to ensure proper operation.
  • The maximum operating temperature range for the JTF1524S12 is -40°C to +100°C. However, derating may be necessary for high-temperature applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTF1524S12 Overview

Use the download button to access the JTF1524S12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTF15, or try a keyword search, such as Power Supply Modules
