XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
To ensure EMC, XP Power recommends following the guidelines in the datasheet for input and output filtering, and using a metal enclosure with proper shielding and grounding. Additionally, the power supply should be installed in a system that meets the relevant EMC standards.
The MTBF of the JTH1548S05 is typically around 500,000 hours, calculated according to MIL-HDBK-217F, but this can vary depending on the operating conditions and environment.
Yes, the JTH1548S05 is designed to withstand vibrations up to 10G peak acceleration, but it's recommended to follow the guidelines in the datasheet for mounting and securing the power supply to ensure reliable operation.
The maximum cable length for the input and output connections depends on the specific application and system requirements, but as a general guideline, XP Power recommends keeping the cable length as short as possible to minimize voltage drops and electromagnetic interference.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTH1548S05 Overview

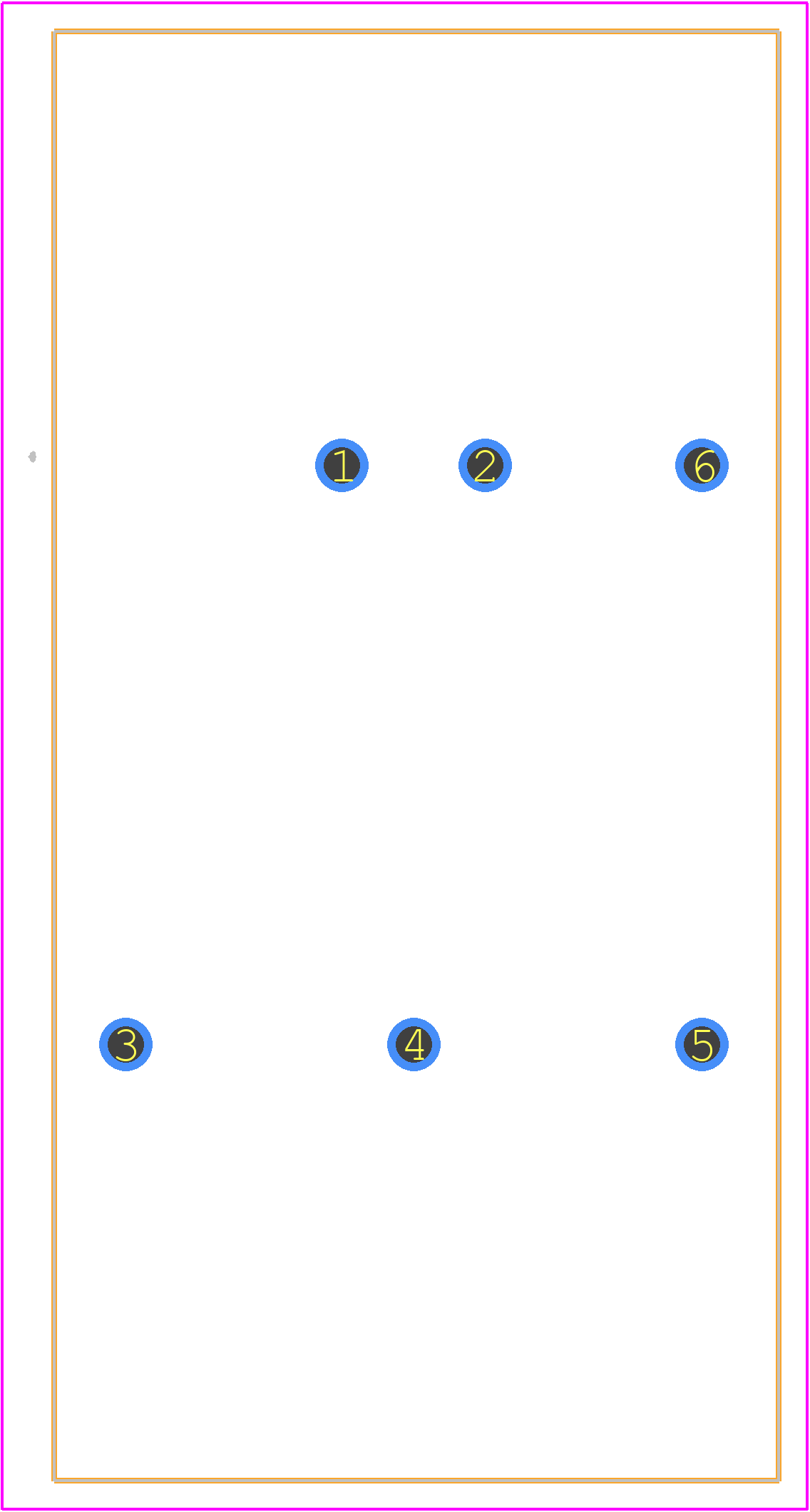

Use the download button to access the JTH1548S05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTH15,
or try a keyword search, such as Power Supply Modules
