The maximum operating temperature range for the JTK1524S05 is -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
The JTK1524S05 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. Ensure you follow the recommended layout and component selection guidelines to maintain these certifications in your application.
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 25V or higher. A low-ESR capacitor, such as an X7R or X5R ceramic capacitor, is recommended for optimal performance.
Yes, the JTK1524S05 is designed to withstand high-vibration environments. However, ensure proper mounting and securing of the module to prevent damage or dislodging during operation.
Consult the XP Power application note AN-103, which provides troubleshooting guidelines for common issues with the JTK1524S05. Additionally, ensure proper thermal management, input voltage regulation, and output loading to prevent overheating and voltage deviations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTK1524S05 Overview

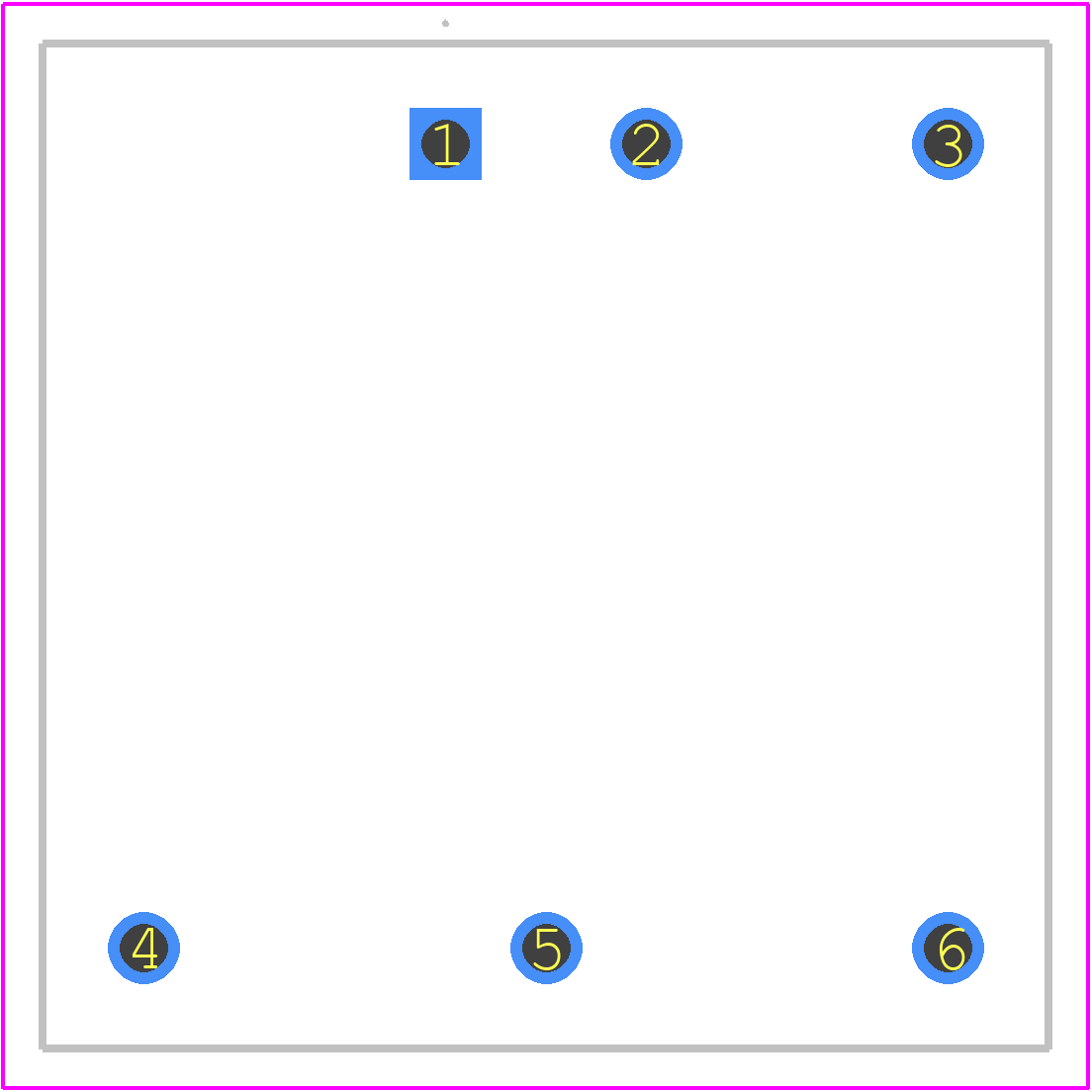

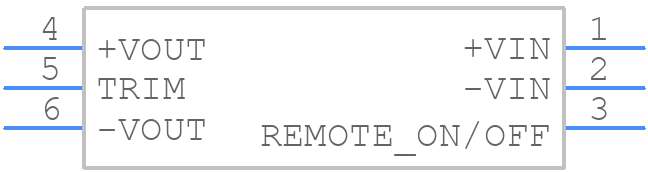

Use the download button to access the JTK1524S05 schematic symbol, PCB footprint, and 3D model.
