JTK1524S3V3 - XP POWER

Description: XP Power JTK 15W Isolated DC-DC Converter Through Hole, Vin 9 → 36 V dc, Vout 3.3V dc, I/O isolation 1.6kV dc

Download JTK1524S3V3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JTK1524S3V3 - XP POWER - PCB symbol
click to zoom
PCB Footprints

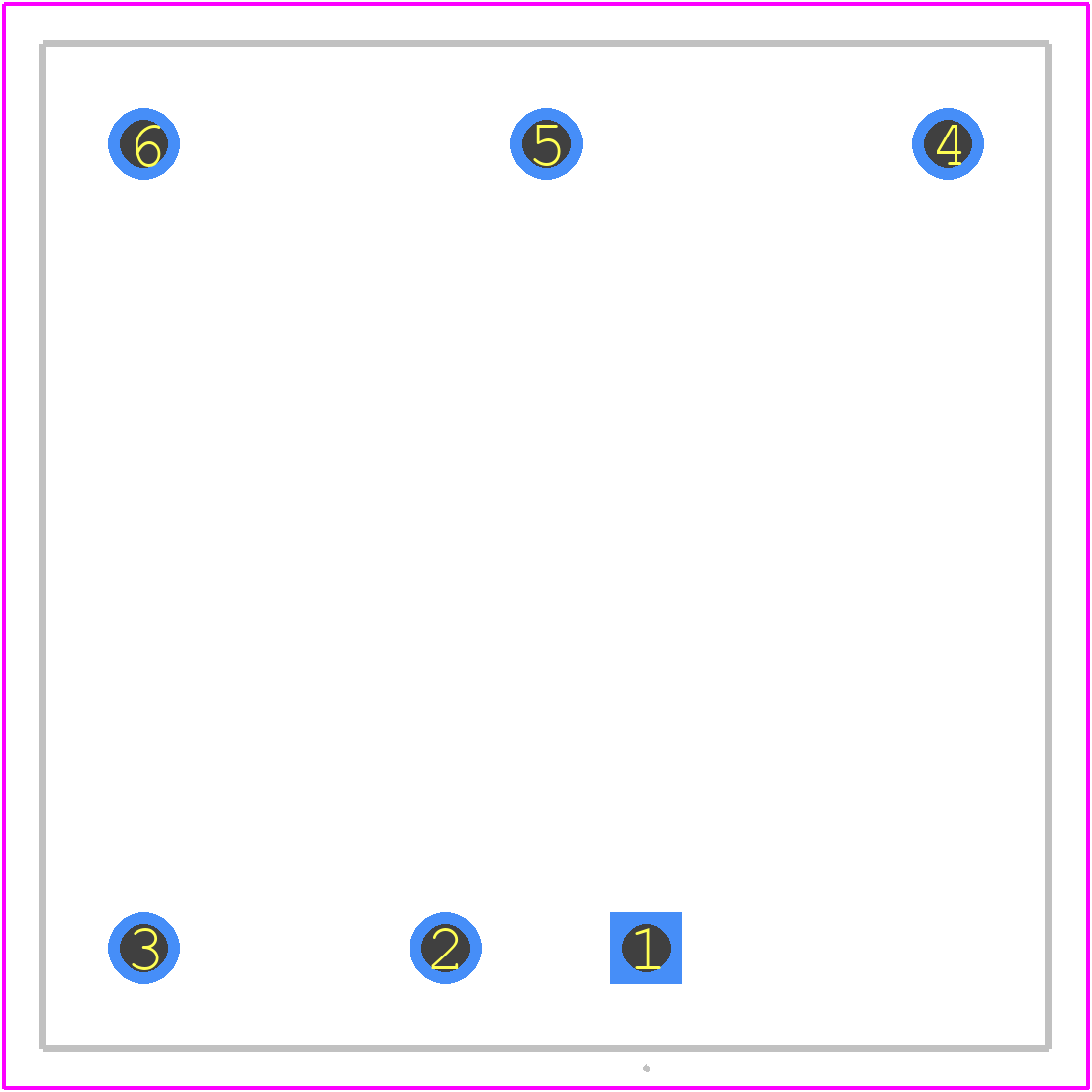

JTK1524S3V3 - XP POWER PCB footprint - Other - Other - JTK1524S3V3-1
click to zoom
3D Models
JTK1524S3V3 - XP POWER - 3D model - Other - JTK1524S3V3-1
click to zoom

JTK1524S3V3 Details

  • Manufacturer Part Number:

    JTK1524S3V3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    Module-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    6

  • Additional Feature:

    SEATED HGT-CALCULATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-XDMA-T6

  • Length:

    25.4 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    65 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.63 V

  • Output Voltage-Min:

    2.97 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    9.92 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    15 W

  • Trim/Adjustable Output:

    YES

  • Width:

    25.4 mm

JTK1524S3V3 Frequently Asked Questions (FAQs)

  • The maximum capacitance load for the JTK1524S3V3 is 10uF. Exceeding this value may affect the stability of the output voltage.
  • The JTK1524S3V3 is rated for operation up to 85°C ambient temperature. However, derating is required for temperatures above 70°C. Consult the datasheet for derating curves.
  • The JTK1524S3V3 meets various safety certifications, including UL60950-1, EN60950-1, and IEC60950-1. However, it's essential to review the certification reports and ensure they meet your specific requirements.
  • To ensure optimal performance and minimize electromagnetic interference (EMI), follow the recommended layout and placement guidelines provided in the datasheet and application notes.
  • Yes, the JTK1524S3V3 can be used in redundant or parallel configurations. However, it's crucial to follow the manufacturer's guidelines and ensure proper synchronization and current sharing to avoid instability or damage.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTK1524S3V3 Overview

Use the download button to access the JTK1524S3V3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTK15, or try a keyword search, such as Power Supply Modules
