JTK3024S12 footprint, schematic symbol and 3D model by XP POWER

Symbol

click to zoom

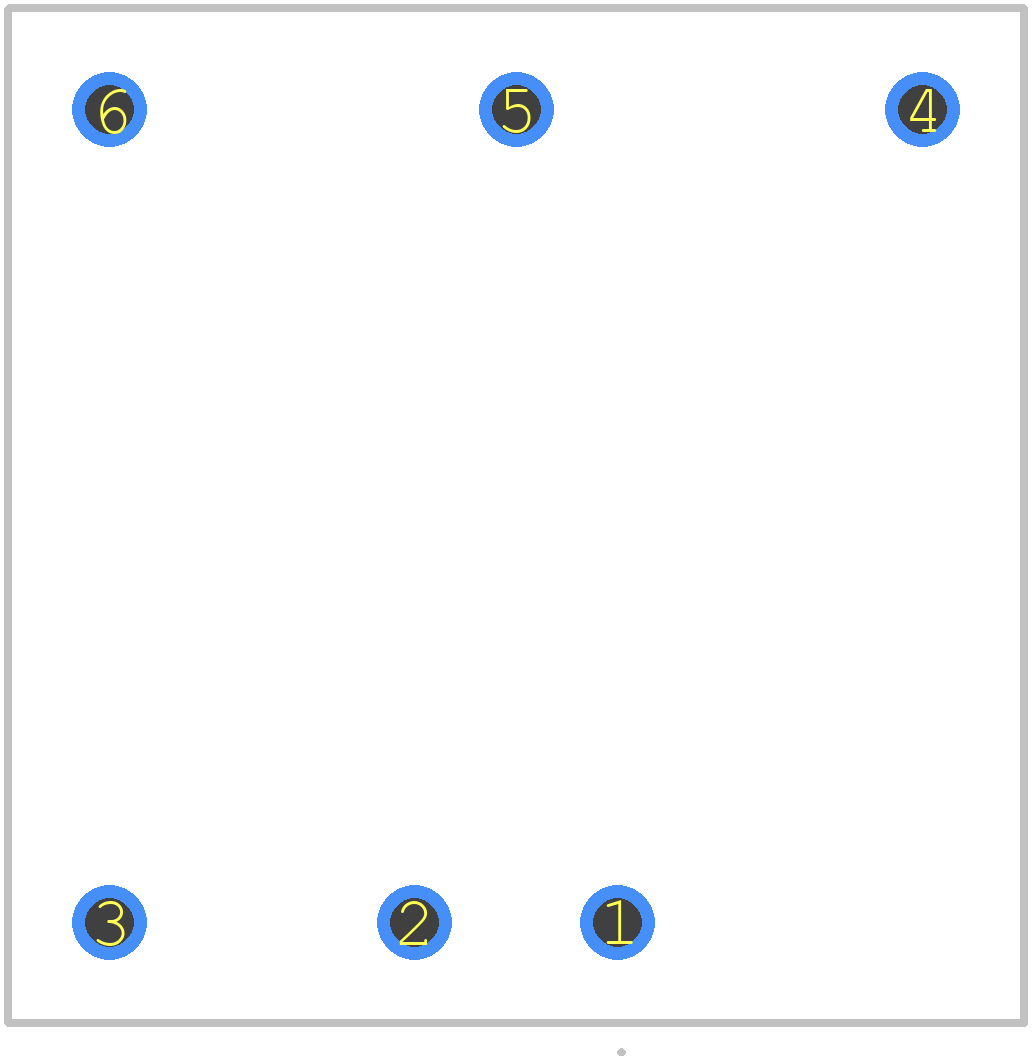

PCB Footprints

JTK3024S12 - XP POWER PCB footprint - Other - Other - JTK30

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for JTK3024S12
Part Number JTK3024S12
Manufacturer XP POWER
Pin Count 6
Part Category Power Supply
Package Category Other
Footprint Name Other - JTK30
Released Date Nov 23, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

JTK3024S12 Details

Manufacturer Part Number:
JTK3024S12
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
Module-6
ECCN Code:
EAR99
Manufacturer:
XP Power
YTEOL:
7
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
S-XDMA-P6
Length:
25.4 mm
Load Regulation-Max:
0.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
6
Operating Temperature-Max:
55 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
13.2 V
Output Voltage-Min:
10.8 V
Output Voltage-Nom:
12 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
SQUARE
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
11.4 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
YES
Width:
25.4 mm

JTK3024S12 Frequently Asked Questions (FAQs)

XP Power recommends a PCB layout with a large copper area for heat dissipation, and a minimum of 2oz copper thickness. A thermal via array under the module can also improve heat transfer.
To ensure reliable start-up and shutdown, XP Power recommends a soft-start circuit to limit inrush current, and a shutdown circuit to prevent voltage spikes. Consult the application note for specific guidance.
Derating curves for high altitude and extreme temperatures are available upon request from XP Power's technical support team. They can provide customized derating curves based on specific application requirements.
Yes, the JTK3024S12 can be used in a redundant or N+1 configuration. However, XP Power recommends consulting their application note for specific guidance on synchronization, ORing, and fault tolerance.
The JTK3024S12 has built-in EMI filtering, but additional external filtering may be required depending on the application. XP Power recommends consulting their EMI application note for specific guidance.
