ALSO AVAILABLE OUTPUT VOLTAGE: -15V; SEATED HGT-CACLUATED
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Input Voltage-Max:
36 V
Input Voltage-Min:
9 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-XDMA-P6
Length:
50.8 mm
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
6
Operating Temperature-Max:
50 °C
Operating Temperature-Min:
-40 °C
Output Voltage-Max:
15.15 V
Output Voltage-Min:
14.85 V
Output Voltage-Nom:
15 V
Package Body Material:
UNSPECIFIED
Package Code:
DMA
Package Shape:
RECTANGULAR
Package Style:
MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Seated Height-Max:
10.66 mm
Surface Mount:
NO
Technology:
HYBRID
Temperature Grade:
OTHER
Terminal Form:
PIN/PEG
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Total Power Output-Max:
30 W
Trim/Adjustable Output:
NO
Width:
25.4 mm
JTL3024D15 Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
To ensure reliable start-up, XP Power recommends a soft-start circuit to limit the inrush current during power-up. Additionally, the input voltage should be ramped up slowly to prevent high inrush currents. The module's enable pin can also be used to control the start-up sequence.
The maximum allowed capacitance on the output of the JTL3024D15 is 10,000 uF. Exceeding this value may cause instability or oscillation in the output voltage. It is recommended to use a capacitance value that is within the specified range to ensure stable operation.
Yes, the JTL3024D15 can be used in a redundant configuration to achieve high availability and reliability. However, it is essential to ensure that the modules are properly synchronized and that the output voltages are matched to prevent any potential issues during switchover.
The typical efficiency of the JTL3024D15 varies depending on the load. At 50% load, the efficiency is typically around 92%, while at 75% load, it is around 94%. At full load, the efficiency is typically around 95%. Please refer to the datasheet for more detailed efficiency curves.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTL3024D15 Overview

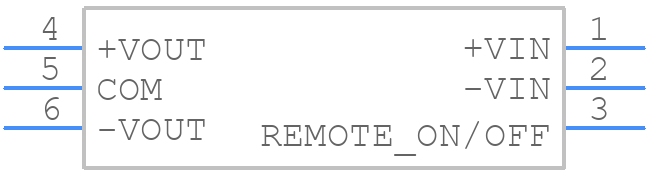

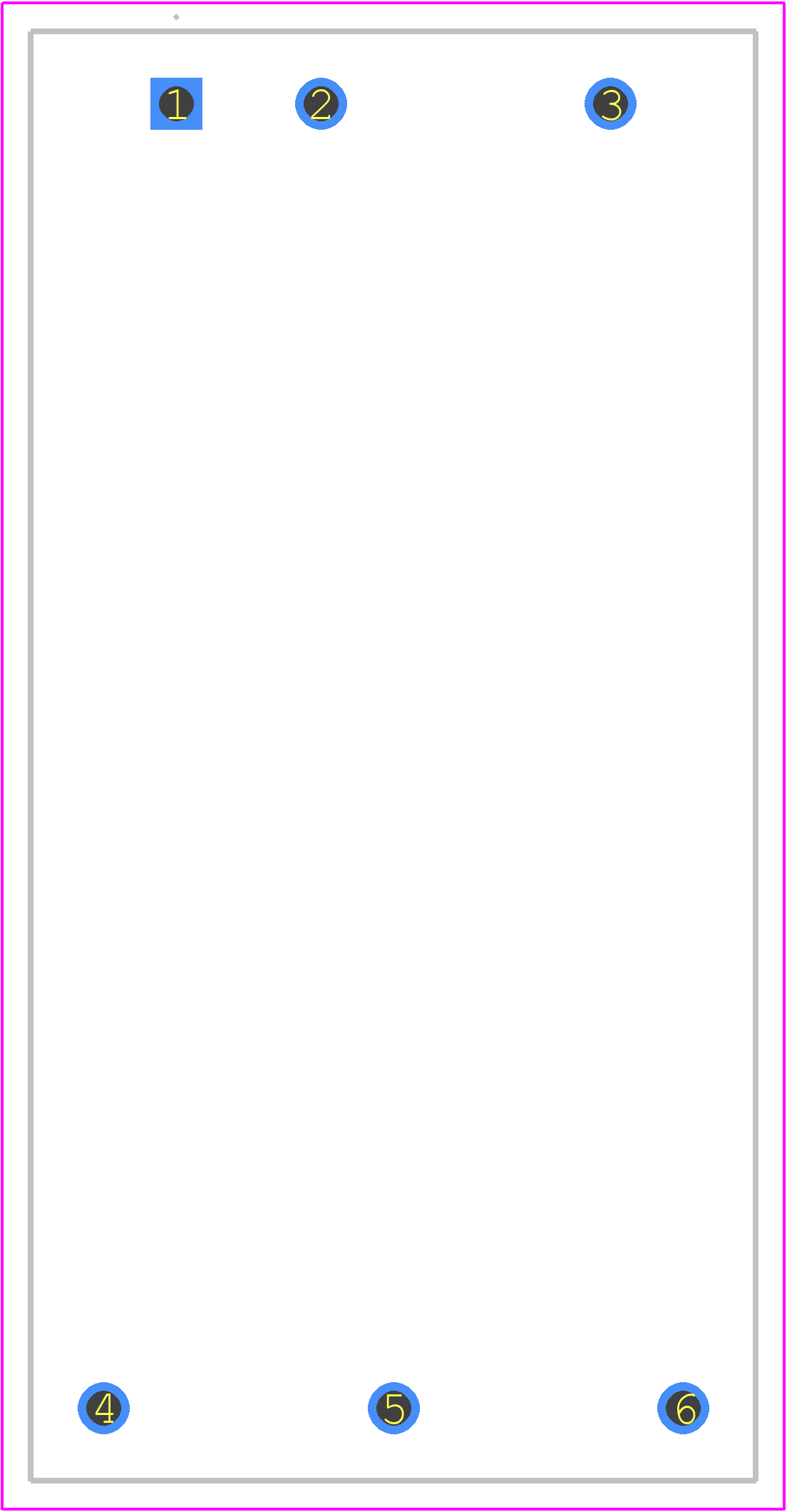

Use the download button to access the JTL3024D15 schematic symbol, PCB footprint, and 3D model.
