XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the copper area should be connected to a heat sink or a metal plate for further heat dissipation.
Yes, the JTL3024S15 is designed to withstand high-vibration environments. It has been tested to meet the IEC 60068-2-6 standard for vibration, which includes sinusoidal vibration at 10-2000 Hz, 2g amplitude, and random vibration at 10-2000 Hz, 4g RMS. However, it's recommended to consult with XP Power's application engineers to ensure the module meets the specific vibration requirements of your application.
To ensure the input voltage is within the recommended range, XP Power recommends using a voltage regulator or a DC-DC converter to regulate the input voltage. Additionally, it's recommended to add input voltage monitoring and protection circuits to prevent overvoltage or undervoltage conditions that may damage the module.
XP Power recommends using a minimum of 10uF to 22uF of input capacitance to ensure stable operation and to filter out input voltage noise. The input capacitance should be placed as close as possible to the module's input pins.
Yes, the JTL3024S15 can be used in a redundant or parallel configuration to achieve higher power output or to provide redundancy in critical applications. However, it's recommended to consult with XP Power's application engineers to ensure the modules are properly configured and synchronized to achieve the desired level of redundancy or parallel operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTL3024S15 Overview

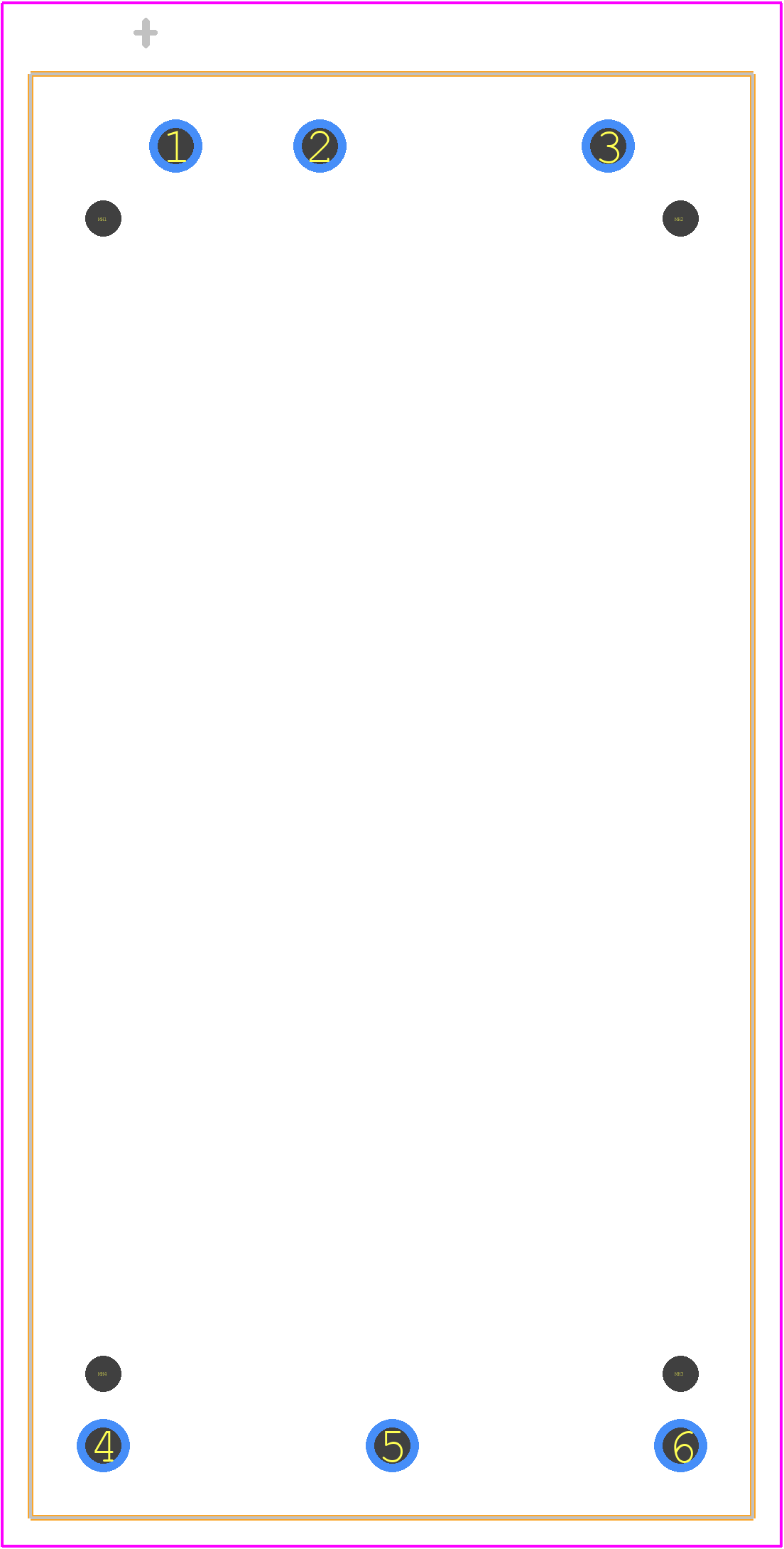

Use the download button to access the JTL3024S15 schematic symbol, PCB footprint, and 3D model.
