JTL3024T0515 - XP POWER

Description: Isolated DC/DC Converters - Through Hole DC-DC, 30W TRIPLE O/P, 4:1

Download JTL3024T0515 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

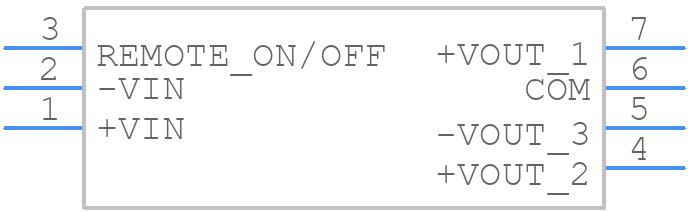

JTL3024T0515 - XP POWER - PCB symbol
click to zoom
PCB Footprints

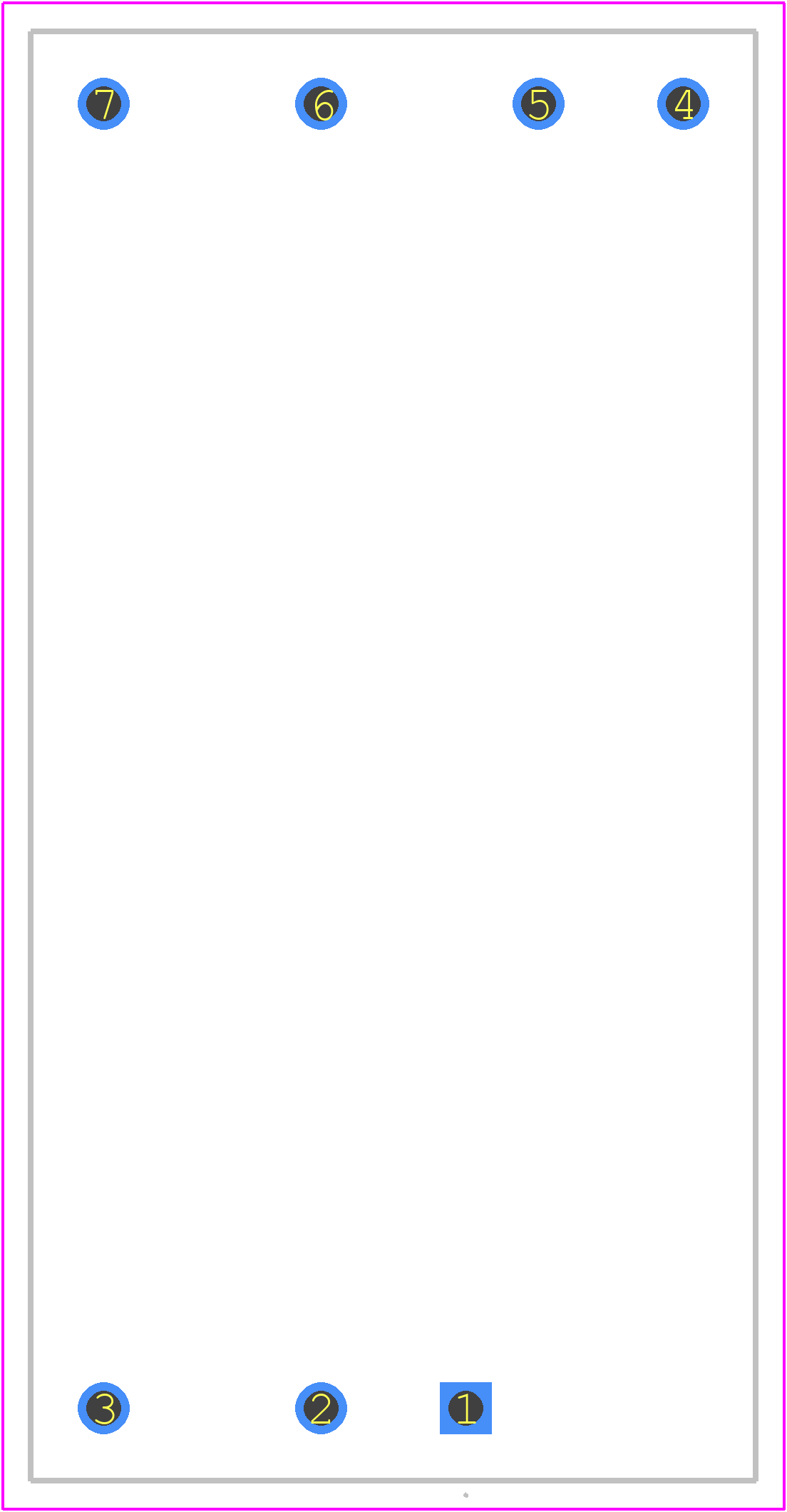

JTL3024T0515 - XP POWER PCB footprint - Other - Other - JTL3024T0515-2
click to zoom
3D Models
JTL3024T0515 - XP POWER - 3D model - Other - JTL3024T0515-2
click to zoom

JTL3024T0515 Details

  • Manufacturer Part Number:

    JTL3024T0515

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Additional Feature:

    ALSO AVAILABLE OUTPUT VOLTAGE:+15V AND -15V; SEATED HGT-CACLUATED

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-XDMA-P7

  • Length:

    50.8 mm

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    3

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    50 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.05 V

  • Output Voltage-Min:

    4.95 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    10.66 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    30 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

JTL3024T0515 Frequently Asked Questions (FAQs)

  • XP Power recommends a PCB layout with a large copper area for heat dissipation, and a thermal management system with a heat sink and thermal interface material to keep the junction temperature below 125°C.
  • The JTL3024T0515 has built-in input voltage transient protection, but it's recommended to add external transient voltage suppressors (TVS) to protect against high-energy transients and spikes.
  • The maximum cable length for the output connectors is 1 meter, and XP Power recommends using shielded cables with a minimum of 18 AWG wire size to minimize voltage drop and electromagnetic interference (EMI).
  • Yes, the JTL3024T0515 can be used in a redundant or N+1 configuration, but it requires additional external circuitry and control logic to manage the redundancy and ensure seamless switchover in case of a failure.
  • The MTBF rating for the JTL3024T0515 is >1 million hours, calculated according to the Telcordia SR-332 Issue 4 methodology, which takes into account the component failure rates, operating conditions, and other factors.
