JTL4024S12 - XP POWER

Description: DC/DC CONVERTER, 40W 2X2" SINGLE O/P

Download JTL4024S12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

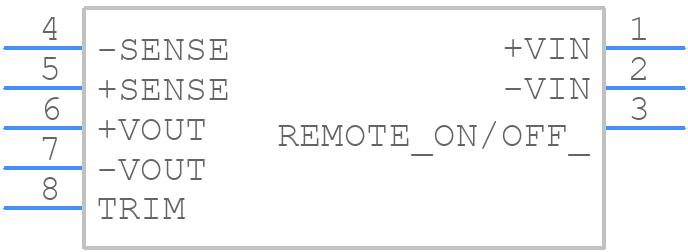

JTL4024S12 - XP POWER - PCB symbol
click to zoom
PCB Footprints

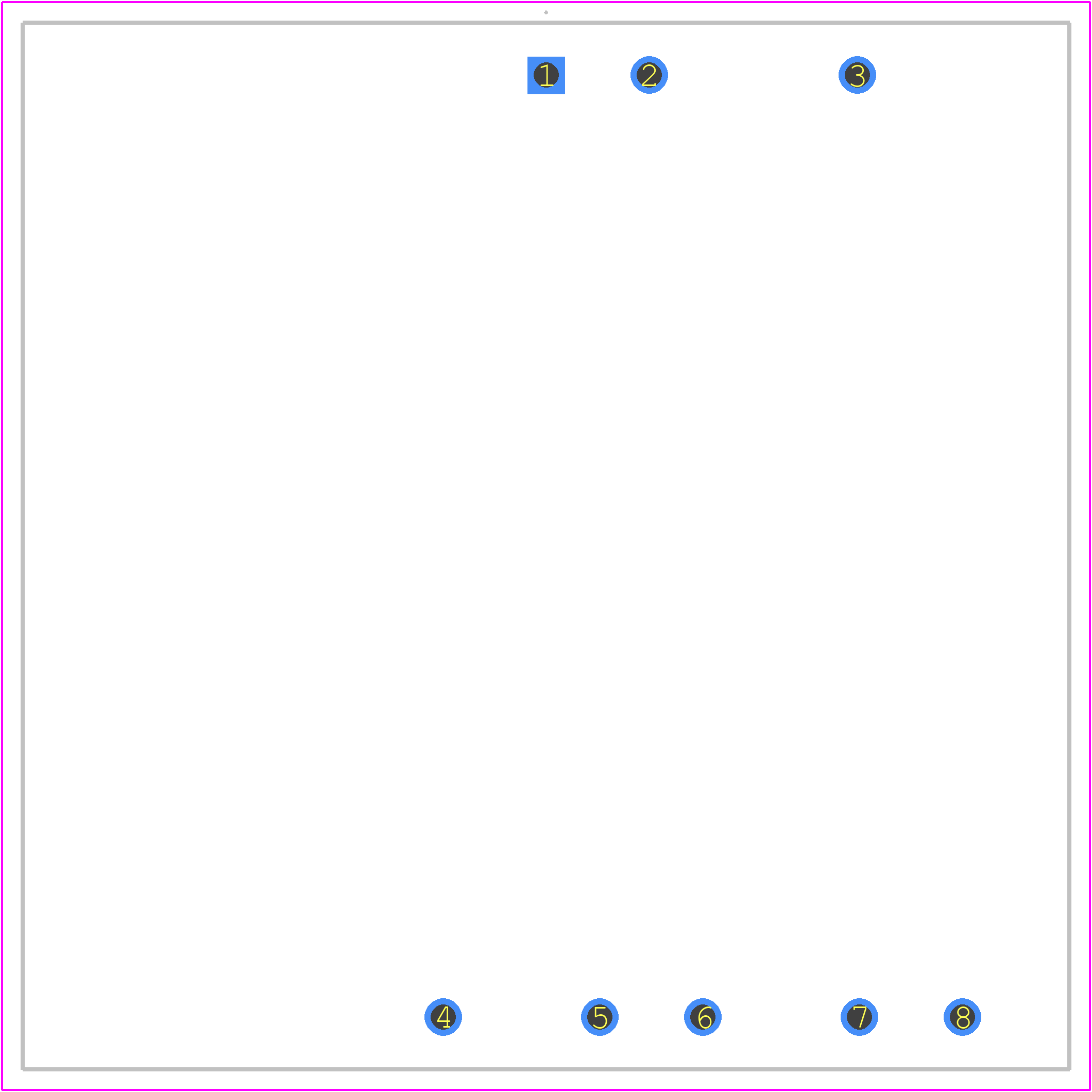

JTL4024S12 - XP POWER PCB footprint - Other - Other - JTL4024S12-1
click to zoom
3D Models
JTL4024S12 - XP POWER - 3D model - Other - JTL4024S12-1
click to zoom

JTL4024S12 Details

  • Manufacturer Part Number:

    JTL4024S12

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    XP Power

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EN, UKCA

  • Efficiency (Main Output):

    91%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    S-MDMA-P8

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3.35 A

  • Output Voltage-Max:

    12.6 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Equivalence Code:

    MODULE,8LEAD,1.8

  • Package Shape:

    SQUARE

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Protections:

    OVER LOAD, OVER VOLTAGE, SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.026 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Total Power Output-Max:

    40 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.025 s

  • Width:

    50.8 mm

JTL4024S12 Frequently Asked Questions (FAQs)

  • The JTL4024S12 can drive up to 10,000 pF of capacitive load, but it's recommended to derate the output voltage and current to ensure stable operation.
  • The JTL4024S12 has a thermal pad on the bottom of the package. Ensure good thermal contact with a heat sink or a metal core PCB to dissipate heat effectively. Also, keep the ambient temperature within the recommended operating range.
  • A 10uF to 22uF X7R or X5R ceramic capacitor is recommended for the input decoupling. This helps to filter out noise and ensure stable operation.
  • Yes, the JTL4024S12 is designed for high-reliability applications. It has a built-in overcurrent protection, overvoltage protection, and thermal shutdown to ensure safe operation. However, it's essential to follow the recommended layout and design guidelines to ensure reliable operation.
  • Start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and of the recommended value. Check for any signs of overheating, and ensure the device is properly cooled. If issues persist, consult the datasheet and application notes or contact XP Power's technical support.
