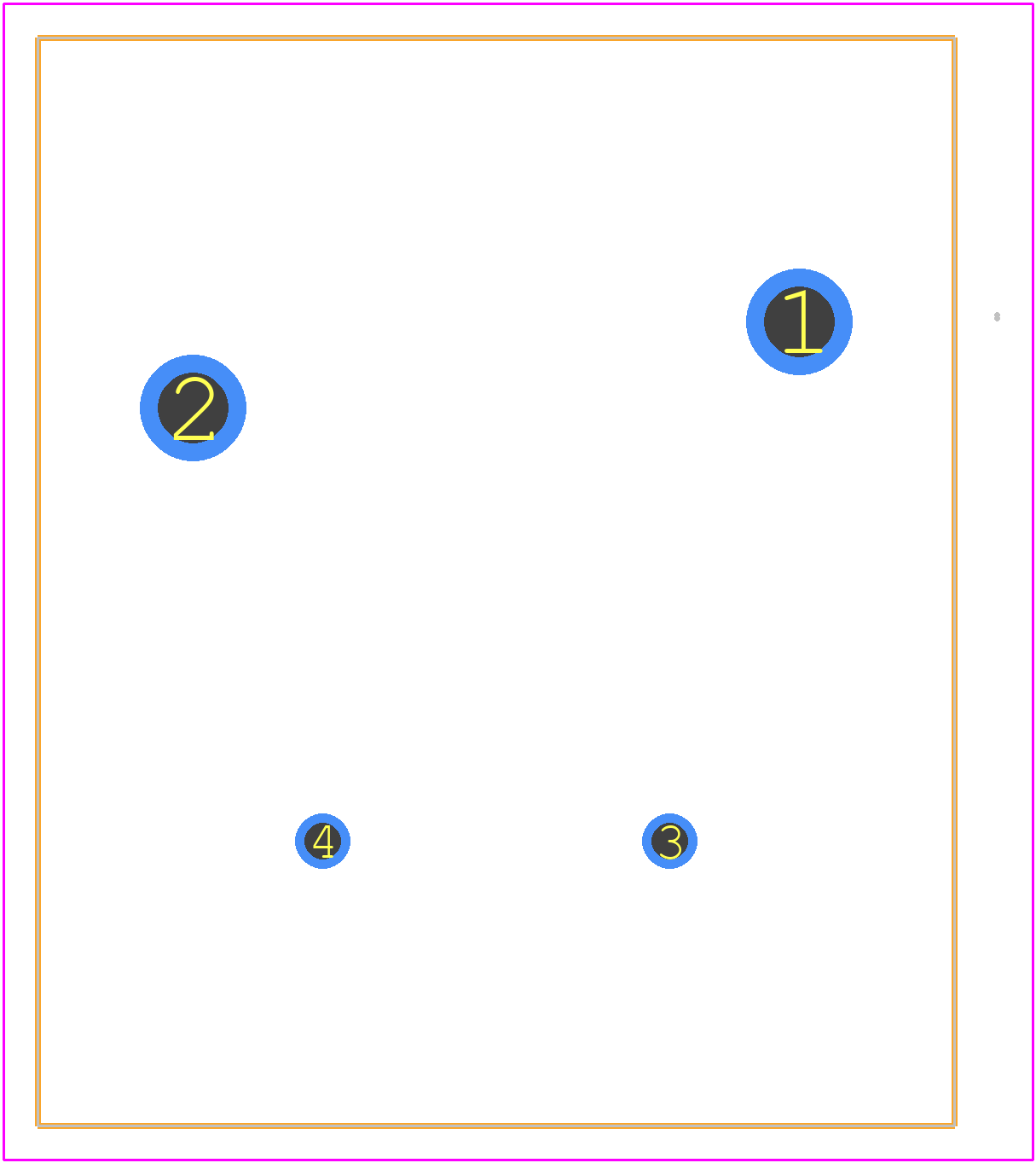

JTN1AS-PA-F-DC24V - Panasonic

JTN1AS-PA-F-DC24V Details

• Manufacturer Part Number:

  JTN1AS-PA-F-DC24V

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• Manufacturer:

  Panasonic Electronic Components

• YTEOL:

  0

• Body Breadth:

  26.9 mm

• Body Height:

  20.2 mm

• Body Length or Diameter:

  31.9 mm

• Coil Current(DC)-Max:

  0.033 A

• Coil Operate Voltage(DC):

  18 V

• Coil Power:

  800 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  720 Ω

• Coil Voltage(DC)-Max:

  28.8 V

• Coil Voltage-Nom:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  8310VA@277VAC

• Contact (AC) Max Rating R Load:

  30A@277VAC

• Contact Current(AC)-Max:

  30 A

• Contact Resistance:

  50 mΩ

• Contact Voltage(AC)-Max:

  277 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Tin Oxide

• Input Switching Control Type:

  Random

• Insulation Resistance:

  100000000 Ω

• Mounting Feature:

  THROUGH HOLE-STRAIGHT

• Number of Terminals:

  4

• Operate Time:

  20 ms

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Packing Method:

  BOX

• Physical Dimension:

  31.9mm x 26.9mm x 20.2mm

• Reference Standard:

  CSA; UL

• Relay Action:

  MOMENTARY

• Relay Form:

  1 FORM A

• Relay Function:

  SPST

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  10 ms

• Surface Mount:

  NO

• Terminal Length:

  0.003599187198374397 inch

• Termination Type:

  SOLDER
