Panasonic recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 10uF) close to the relay's power pins to reduce electromagnetic interference (EMI) and ensure reliable operation.
To handle the high inrush current, use a suitable current-limiting resistor or inrush current limiter in series with the relay's coil, and ensure the power supply can handle the peak current. Additionally, consider using a soft-start circuit or a relay with built-in inrush current limiting.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Panasonic recommends derating the relay's performance in extreme environments. For example, in high-temperature environments (above 70°C), the relay's life expectancy may be reduced, and its contact resistance may increase.
Yes, the JTN1S-PA-F-DC5V relay is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms). However, it's essential to ensure proper PCB mounting and secure the relay using suitable fasteners to prevent damage or dislodging.
To prevent contact contamination, handle the relay by the case, avoid touching the contacts, and store the relay in a clean, dry environment. If contamination occurs, use a soft brush or a lint-free cloth with a mild solvent (e.g., isopropyl alcohol) to clean the contacts.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JTN1S-PA-F-DC5V Overview

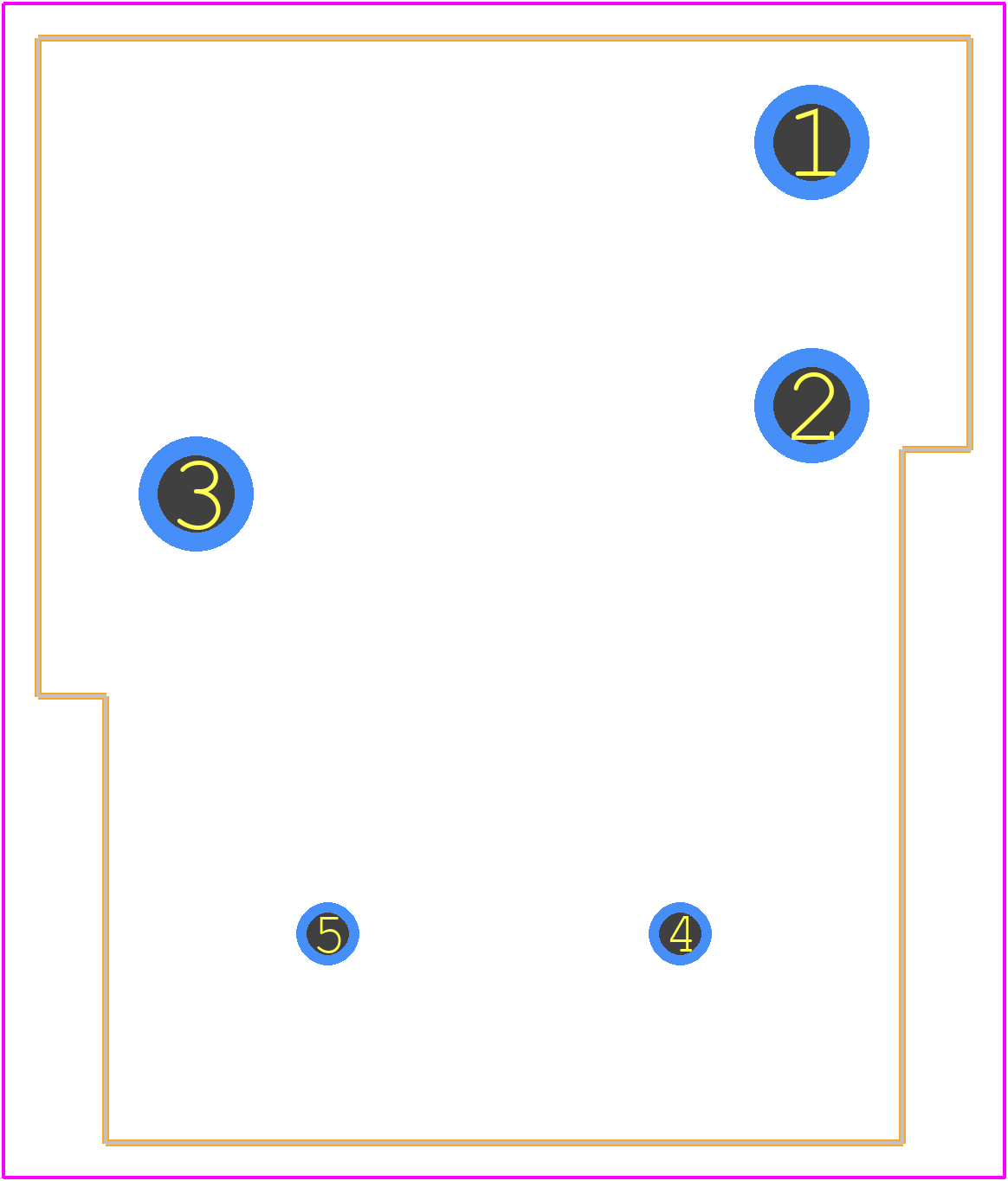

Use the download button to access the JTN1S-PA-F-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTN1S,
or try a keyword search, such as Other Relays
