JTOS-100P+ Details

• Manufacturer Part Number:

  JTOS-100P+

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

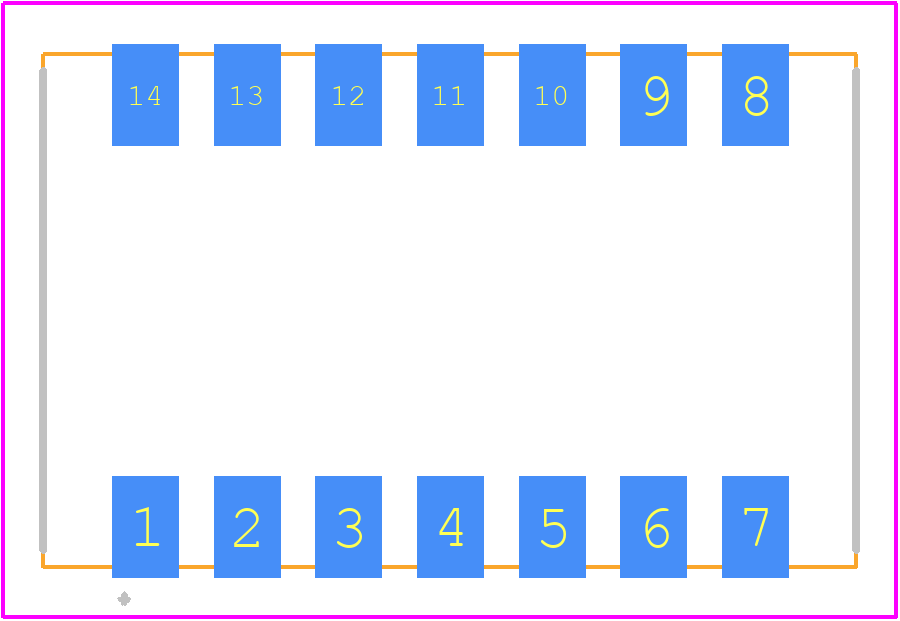

• Package Description:

  ROHS COMPLIANT, CASE BK377, 14 PIN

• ECCN Code:

  EAR99

• Manufacturer:

  Mini-Circuits

• YTEOL:

  0

• Control Voltage-Max:

  5 V

• Control Voltage-Min:

  0.5 V

• JESD-609 Code:

  e3

• Modulation Sensitivity:

  4 MHz/V

• Mounting Feature:

  SURFACE MOUNT

• Number of Terminals:

  14

• Offset Frequency:

  1 kHz

• Operating Frequency-Max:

  59 MHz

• Operating Frequency-Min:

  48 MHz

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -55 °C

• Oscillator Type:

  VOLTAGE CONTROLLED OSCILLATOR

• Output Power:

  9 dBm

• Package Body Material:

  METAL

• Package Equivalence Code:

  SMDIP14,.5

• Phase Noise:

  -83 dBc/Hz

• Physical Dimension:

  20.32mm x 12.83mm x 6.35mm

• Qualification Status:

  Not Qualified

• Supply Current-Max:

  18 mA

• Supply Voltage-Nom:

  12 V

• Surface Mount:

  YES

• Terminal Finish:

  Tin (Sn) - with Nickel (Ni) barrier
