JTV1AS-PA-12V - Panasonic

Description: PANASONIC ELECTRIC WORKS - JTV1AS-PA-12V - RELAY, SPST-NO, 277VAC, 28VDC, 30A

Download JTV1AS-PA-12V Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
JTV1AS-PA-12V - Panasonic - PCB symbol
click to zoom

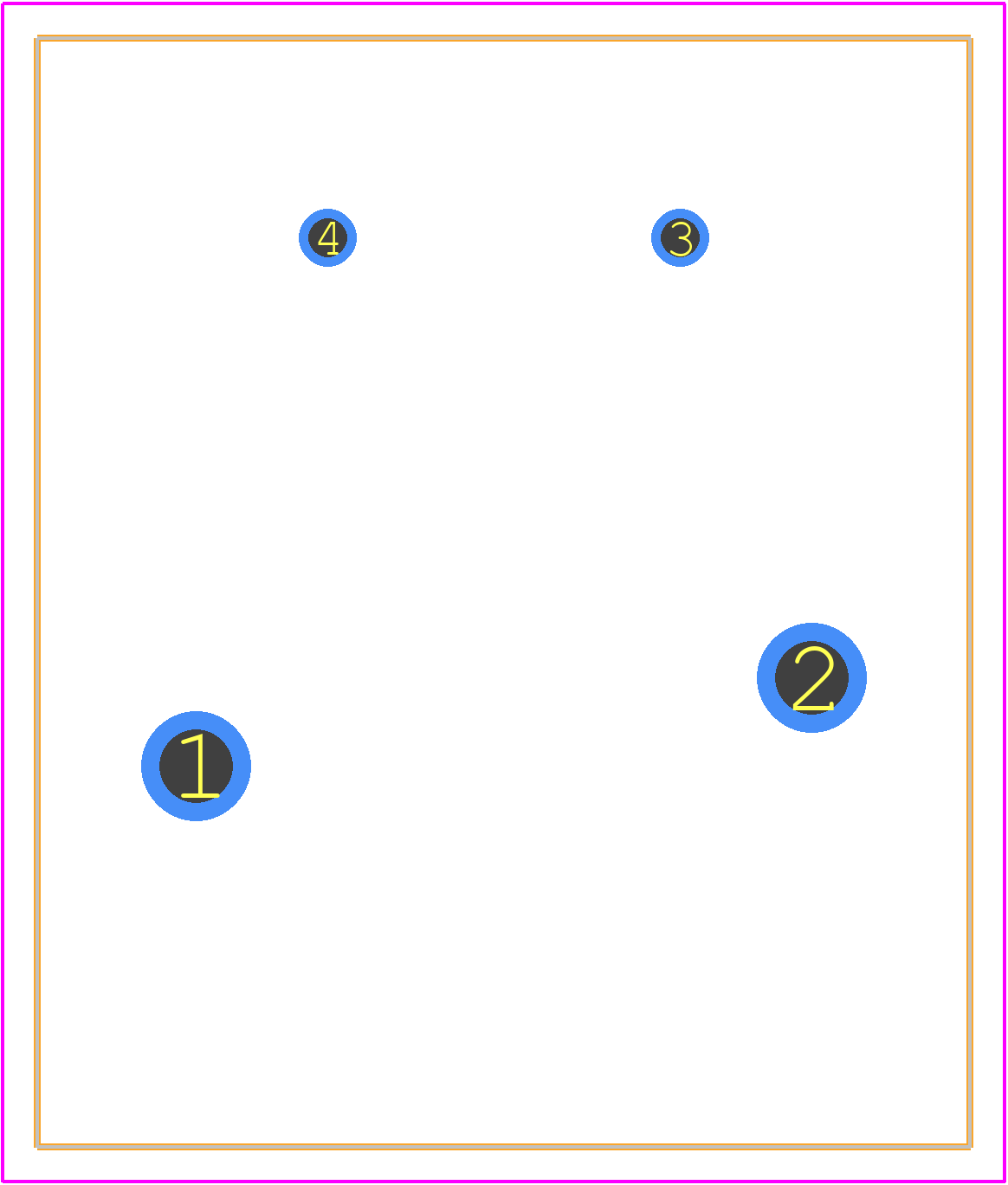

PCB Footprints
JTV1AS-PA-12V - Panasonic PCB footprint - Other - Other - JTV1AG-PA-24V
click to zoom
3D Models
JTV1AS-PA-12V - Panasonic - 3D model - Other - JTV1AG-PA-24V
click to zoom

JTV1AS-PA-12V Details

  • Manufacturer Part Number:

    JTV1AS-PA-12V

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    0

  • Body Breadth:

    26.9 mm

  • Body Height:

    20.2 mm

  • Body Length or Diameter:

    31.9 mm

  • Coil Current(DC)-Max:

    0.083 A

  • Coil Operate Voltage(DC):

    9 V

  • Coil Power:

    1000 mW

  • Coil Release Voltage(DC):

    1.2 V

  • Coil Resistance:

    144 Ω

  • Coil Voltage(DC)-Max:

    12 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    30A@277VAC

  • Contact Current(AC)-Max:

    30 A

  • Contact Voltage(AC)-Max:

    277 V

  • Contact/Output Supply Type:

    AC

  • Electrical Life:

    100000 Cycle(s)

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Operate Time:

    15 ms

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX

  • Physical Dimension:

    31.9mm x 26.9mm x 20.2mm

  • Reference Standard:

    CUL; UL

  • Relay Action:

    MOMENTARY

  • Relay Function:

    SPST

  • Relay Type:

    POWER/SIGNAL RELAY

  • Release Time:

    10 ms

  • Surface Mount:

    NO

  • Termination Type:

    SOLDER

JTV1AS-PA-12V Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the JTV1AS-PA-12V is -40°C to 125°C.
  • To ensure reliability in high-vibration environments, it is recommended to follow proper mounting and soldering techniques, and to use a suitable vibration-dampening material to reduce stress on the component.
  • Yes, the JTV1AS-PA-12V is designed to operate in humid environments, but it is recommended to follow proper moisture-protection measures, such as conformal coating, to prevent moisture ingress.
  • The maximum allowable current for the JTV1AS-PA-12V is 1A, but it is recommended to derate the current to ensure reliable operation.
  • To handle ESD protection for the JTV1AS-PA-12V, it is recommended to follow proper ESD handling procedures, such as using ESD-protective packaging, wrist straps, and mats, and to design the PCB with ESD protection in mind.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

JTV1AS-PA-12V Overview

Use the download button to access the JTV1AS-PA-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JTV1A, or try a keyword search, such as Power/Signal Relays
