JTX-2-10T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download JTX-2-10T+ Model

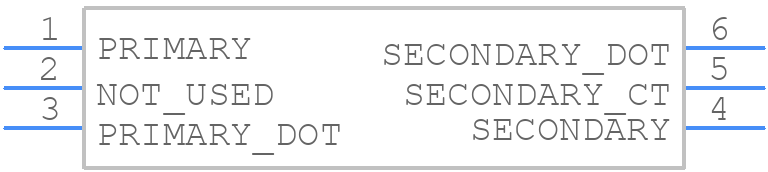

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
JTX-2-10T+ - Mini-Circuits PCB footprint - Other - Other - BH292_2023-1
click to zoom
3D Models
JTX-2-10T+ - Mini-Circuits  - 3D model - Other - BH292_2023-1
click to zoom

JTX-2-10T+ Details

  • Manufacturer Part Number:

    JTX-2-10T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.18

  • Additional Feature:

    HEIGHT AND WIDTH DIMENSION INCLUDE TERMINALS ALSO

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    1000 MHz

  • Cut-off Frequency-Min:

    50 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.72 mm

  • Insertion Loss:

    1.65 dB

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    1000000 kHz

  • Operating Frequency-Min:

    50000 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    7.11 mm

JTX-2-10T+ Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes, which can be found on their website. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The JTX-2-10T+ has a 50-ohm input and output impedance. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching calculators or consult with a RF engineer to determine the optimal component values.
  • The JTX-2-10T+ can handle up to 1W of continuous power. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and minimize the risk of overheating.
  • The JTX-2-10T+ is rated for operation up to 85°C. However, it's recommended to derate the power handling and ensure proper heat sinking to prevent overheating. Consult with a thermal engineer to determine the optimal thermal management strategy.
  • Use a signal generator and a spectrum analyzer to test the JTX-2-10T+ in a controlled environment. Check for proper power supply, impedance matching, and PCB layout. Consult the datasheet and application notes for troubleshooting guidelines and contact Mini-Circuits' technical support if necessary.
