A good PCB layout for JW1FSN-DC12V involves keeping the input and output pins separate, using a ground plane, and minimizing the length of the input and output traces to reduce electromagnetic interference (EMI).
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves, ensure good thermal management, and consider using a heat sink if necessary.
JW1FSN-DC12V has built-in EMI filtering, but additional filtering may be required depending on the specific application and regulatory requirements. A common-mode choke and X-capacitors can be added to the input and output lines to improve EMI performance.
Yes, JW1FSN-DC12V can be used in redundant or parallel configurations to improve system reliability and increase power output. However, it's essential to follow the recommended configuration guidelines and ensure proper synchronization and control.
JW1FSN-DC12V should be stored in a dry, cool place, away from direct sunlight and moisture. Handling precautions include using anti-static wrist straps, mats, or bags to prevent electrostatic discharge (ESD) damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
JW1FSN-DC12V Overview

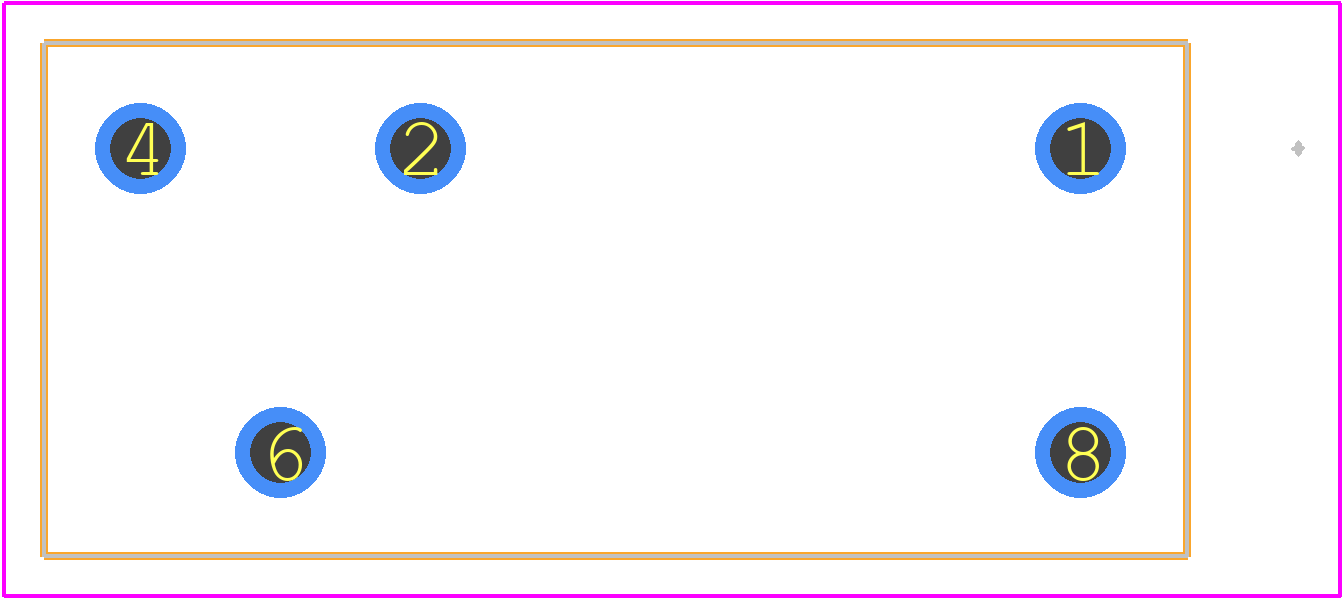

Use the download button to access the JW1FSN-DC12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like JW1FS,
or try a keyword search, such as Power/Signal Relays
