JW1SN-12 - Panasonic

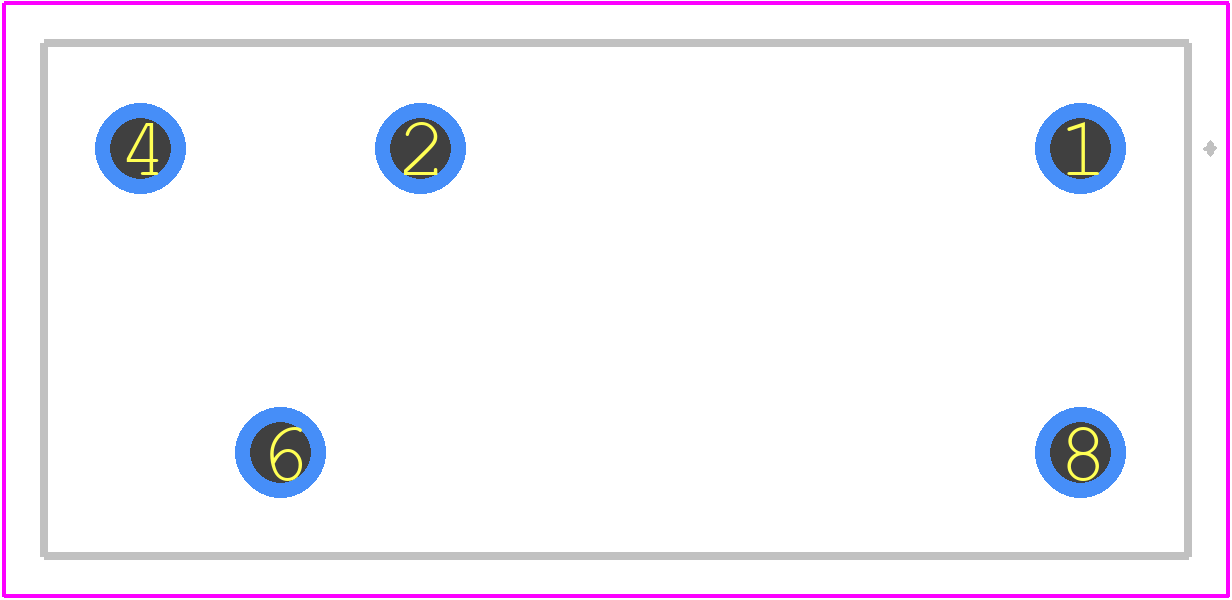

JW1SN-12 Details

• Manufacturer Part Number:

  JW1SN-12

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.41.00.20

• Manufacturer:

  Panasonic Electronic Components

• Body Breadth:

  12.8 mm

• Body Height:

  20 mm

• Body Length or Diameter:

  28.6 mm

• Coil Operate Voltage(DC):

  8.4 V

• Coil Release Voltage(DC):

  1.2 V

• Coil Resistance:

  270 Ω

• Coil Voltage(DC)-Max:

  15.6 V

• Coil Voltage-Nom:

  12 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Power Rating R Load:

  1250VA@250VAC

• Contact (AC) Max Rating R Load:

  5A@250VAC

• Contact Current(AC)-Max:

  5 A

• Contact Current(DC)-Max:

  5 A

• Contact (DC) Max Power Rating R Load:

  150W@30VDC

• Contact (DC) Max Rating R Load:

  5A@30VDC

• Contact Resistance:

  100 mΩ

• Contact Voltage(AC)-Max:

  250 V

• Contact Voltage(DC)-Max:

  30 V

• Contact/Output Supply Type:

  AC

• Electrical Life:

  100000 Cycle(s)

• End Contact Material:

  Silver Nickel

• Input Switching Control Type:

  Random

• Insulation Resistance:

  1000000000 Ω

• Number of Terminals:

  5

• Operate Time:

  15 ms

• Operating Temperature-Max:

  60 °C

• Operating Temperature-Min:

  -40 °C

• Physical Dimension:

  28.6mm x 12.8mm x 20mm

• Reference Standard:

  CSA; TUV; UL; VDE

• Relay Action:

  LATCHED

• Relay Form:

  1 FORM C

• Relay Function:

  SPDT

• Release Time:

  5 ms

• Terminal Length:

  0.003599187198374397 inch

• Termination Type:

  SOLDER
